Product Overview

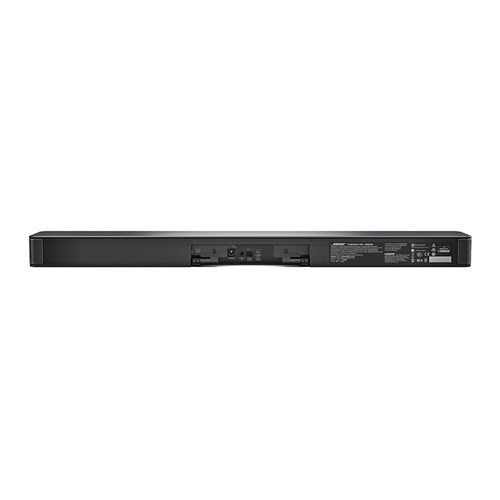

The Bose Videobar VB1 is an all-in-one USB conferencing device that brings premium audio and video to small meeting areas — from huddle spaces to medium-sized rooms. Be seen clearly. Be heard and understood fully. Six beam-steering microphones automatically focus on voices in the room and reject noise. A 4K ultra-HD camera with autoframing delivers crystal-clear video, helping remote participants feel like they’re in the room. Proprietary Bose sound supports multimedia presentations, plays Bluetooth® audio, and ensures voices on the call sound natural. Single-cable connectivity means there’s no need for separate audio and video cables at the table, reducing clutter. Whether it’s a quick morning check-in or a fullafternoon workshop, the Bose Videobar VB1 helps you huddle up, see more, hear more, and work better.
AN ALL-IN-ONE USB SOLUTION
6 BEAM-STEERING MICROPHONES
ELEGANT LOW-PROFILE DESIGN
4K ULTRA-HD CAMERA
GROUP MODE AUTOFRAMING
SINGLE-CABLE CONNECTIVITY
SIGNATURE BOSE PROFESSIONAL SOUND QUALITY
REMOTE MANAGEMENT
MULTIPLE MOUNTING OPTIONS
Key Features
- Bring the Bose experience to huddle spaces and medium-sized conference rooms with an all-in-one solution that requires minimal setup and delivers premium audio and video performance
- Make conversation more natural with six beam-steering microphones that actively focus on voices and reject noise; and auto EQ that delivers optimized audio to all participants
- Communicate and be seen more clearly — a 4K ultra-HD camera with autoframing allows everyone to see and understand the presenter, whiteboard, flipchart, or other in-room objects — and feel more like they’re together in the same room
- Bring enhanced video and audio performance to popular Unified Communications platforms such as Microsoft Teams, Google Meet, Zoom, and more
- Support multimedia presentations with premium audio with Bose-proprietary transducers that deliver room-filling sound from a USB-connected laptop or wireless Bluetooth device
- Clean up the conferencing experience with single-cable connectivity that eliminates clutter and an elegant low-profile design that complements the room and improves aesthetics

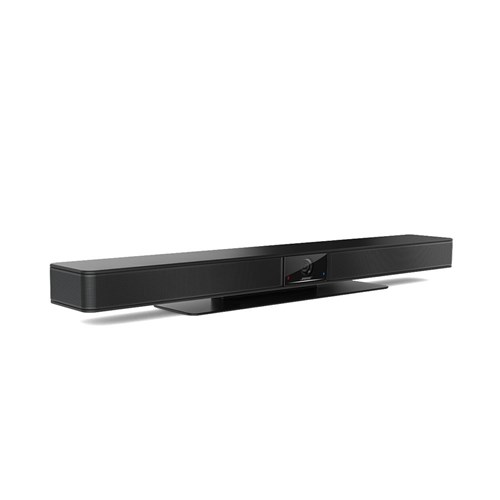

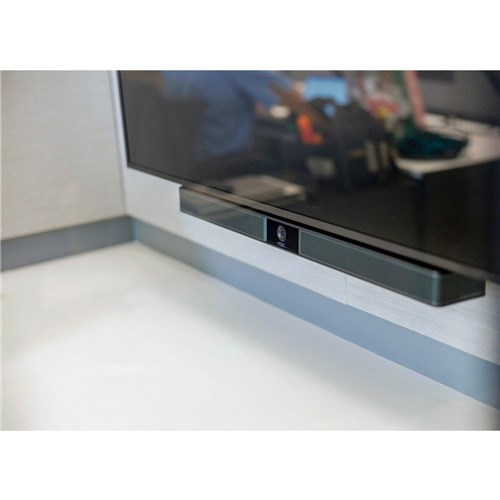

- Mount easily in multiple ways with included table stand and wall-mount kit or optional mud ring and display mounting kit
- Connect to existing network infrastructure, making installation and troubleshooting faster and allowing for remote updates, management, and monitoring
- Configure easily with Bose Work Configuration software, available as an app or via web browser; and manage remotely with the Bose Work Management software which displays real-time status and allows for easy single-unit or system-wide changes
- Control settings in real time from a smartphone using the Bose Work mobile app to easily adjust volume, mute, pan, tilt, zoom, zoom presets, and Bluetooth pairing
- Easily connect a smartphone via Bluetooth connectivity to use as a standalone speakerphone or stream music
ZBEVB1

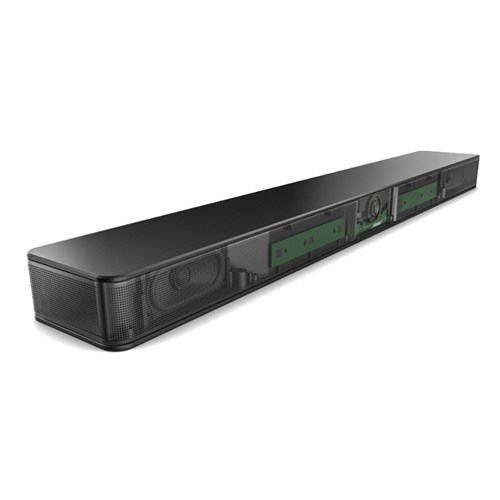

LOUDSPEAKER ARRAY
- Configuration: Stereo loudspeakers, ported enclosure
- Amplifier Power: 20 W per channel, < 0.3% distortion over frequency range
- Frequency Response (–10 dB): 85 – 20,000 Hz
- Maximum SPL @ 1 m: 89 dB (IEC 60268-5, mono input, wall-mounted)
MICROPHONE ARRAY
- Configuration: 6 microphones
- Frequency Response (±3 dB): 20 – 15,000 Hz
- Pickup Range/: 6.0 m (19.7 ft)
- Technology: Static and adaptive dynamic beam-forming, 3 exclusion zones, stereo acoustic echo cancellation (AEC), digital noise suppression

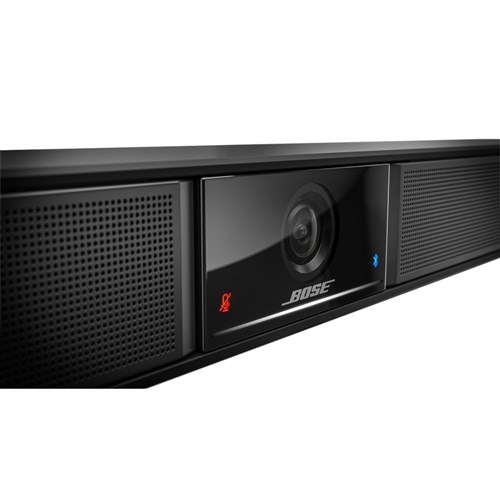

CAMERA AND VIDEO
- Field of View (FOV): 123° diagonal × 115° horizontal × 81° vertical
- Image Sensor: 8 MP
- Focus Distance: 0.5 m (1.6 ft) to ∞
- Lens: Up to 5x digital zoom, detachable camera privacy cover (included)
- Positioning: Autoframing capability or manual pan-tilt-zoom (PTZ) with 3 configurable presets (Home, 1, 2)
- Processing: Automatic white balance, automatic brightness, digital noise reduction
- USB Device Video Class (UVC): v1.1
- Supported Video Resolutions: UHD 2160p (4K), 1080p, 720p, 960×480, 848×480, 640×480, 640×360, 432×240 (30 fps)
- Video Encoding: H.264, M-JPEG

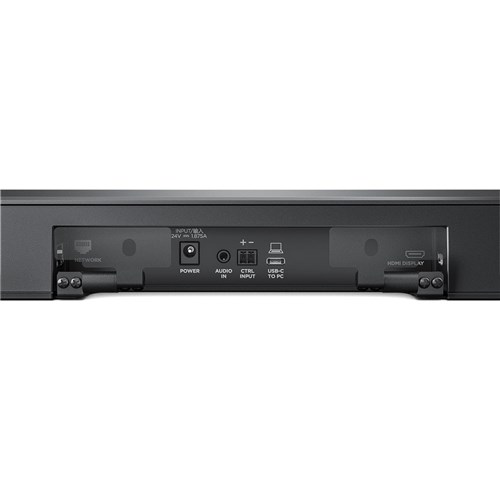

CONNECTIONS
- USB: USB Type-C® to host computer (with DisplayLink) (USB 3.0 UAC, UVC, HID)
- Network: Wired: RJ-45, 1 Gbps Ethernet (IEEE 802.3) Wireless: Wi-Fi 802.11ac
- Bluetooth: Bluetooth 4.2 HSP, A2DP, AVRCP, BLE
- Display: HDMI 1.4b and 2.1 output (to display, from host computer)
- Analog Audio: Stereo 3.5 mm (1/8 in) input
- General Purpose: 2-pin Euroblock general-purpose input
- Power: Via external power supply with localized power cord (included), Input: 110 – 240 VAC, 50/60 Hz, 1.5 A max., Output: 24 VDC, 1.875 A
SOFTWARE APPLICATIONS
Control/Configuration
Bose Work Configuration software (available for Windows and macOS or via web browser)
Bose Work Management software (available for Windows)
Bose Work mobile app (available for iOS and Android)
SYSTEM REQUIREMENTS
Operating System
Windows 7, 8.1, or 10
macOS 10.10 or higher
Chrome OS (Google Chromebook)
