The HELIX-2510 is the ideal solution for efficient, flexible presentations. This system features a built-in Bluetooth player and provides all the essential tools required - making it perfect for school assemblies and events.
Key Features:
- Portable PA System.
- Built in Bluetooth player.
- Built in USB/SD Player/Recorder. 200 watt RMS.
- User friendly battery compartment design for simple battery replacement.
- Integrated retractable handle and BIG wheels for easy portability.
- Built in 2-way 250 watt speaker system (10” + 1” HF).
- Scan and Sync button for quick and simple mic channel set-up.
- Digital limiter prevents output distortion, with 6-step LED audio meter indicator.
- Storage compartment for 4 transmitters (handheld x 4 pcs or handheld x 2 pcs + beltpack x 2 pcs) and a switching power supply.
- Up to 6 hours battery.
ZNAHX2510PK3
- Onboard Class-D amplifier: Dual 250W Class-D power amplifiers.
- Maximum output power:
Built in 2-way 250 watt speaker system.
250 watt active output for external 4~8ohm speaker.
- Speaker system: 10” LF, 1” HF and crossover.
- Sensitivity: Maximum 110dB.
- T.H.D.: < 0.5%.
- Frequency response: 50Hz-20KHz±3dB.
- Audio inputs:
MIC/LINE in x 2 (6.3mm/XLR COMBO).
LINE IN x 2 (6.3mm/XLR COMBO, 3.5mm).
Digital in (USB 2.0).
Up to 4 wireless microphones.
- Audio output: ACTIVE OUT (XLR).
- External speaker: 8Ω (6.3mm), with volume control.
- Controls: EQUALISER, REVERB & VOICE PRIORITY on wired/wireless mics.
- Audio meter indicator: 6 LED indicators.
- Power supply: Input: 100-240V AC / 30-32V DC, 4A.
- Battery type: Lead-Acid.
- Battery specifications: 12V, 5A.
- Battery quantity: 2.
- Battery Indicator: 4 LED indicators.
- Operating time: 5-6 hrs in music, >10 hrs in speech.
- Charging time: about 6 hrs.
- Storage: Handheld x 4 pcs or Handheld x 2 pcs + Beltpack x 2pcs, and a switching power supply.
- Dimensions (mm): 550 (H) x 360 (W) x 340 (D).
- Weight: 18.7kg.
* NOTE: The above specifications are subject to change without prior notice.

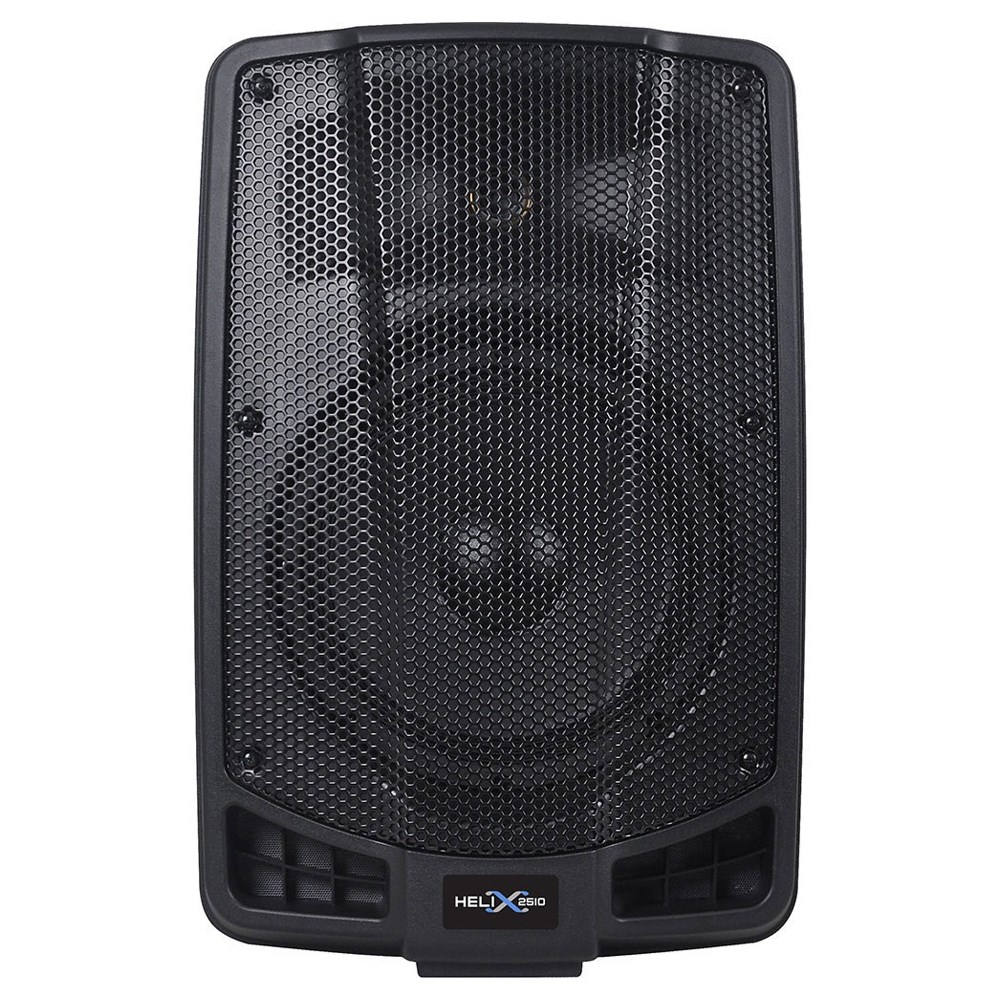

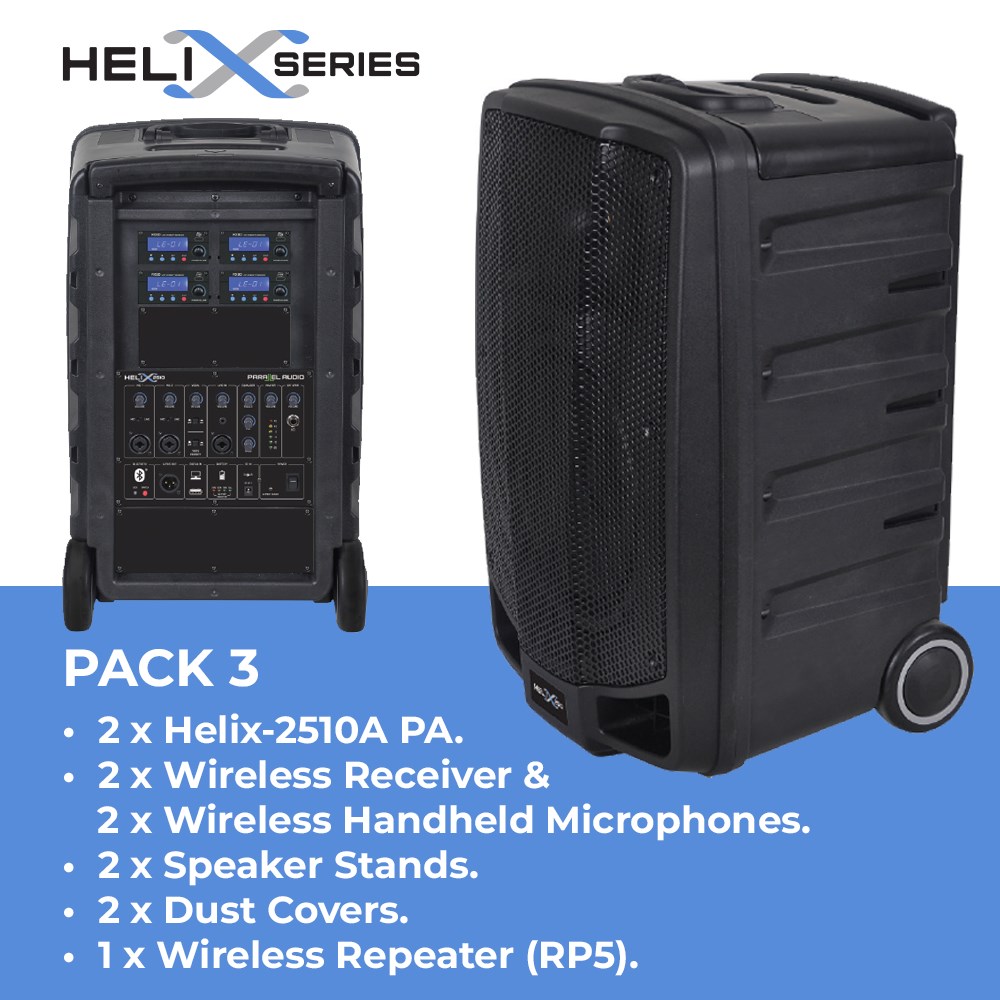

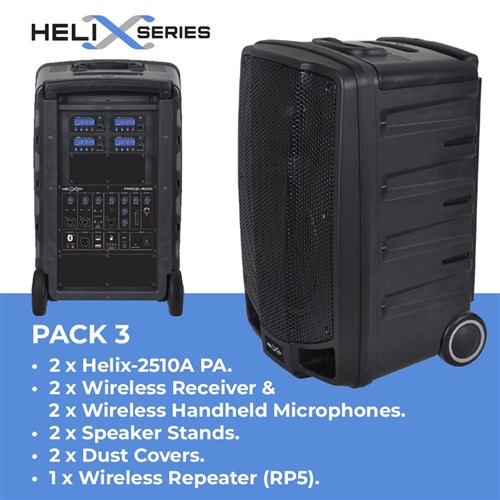

• 2 x Helix-2510A PA.

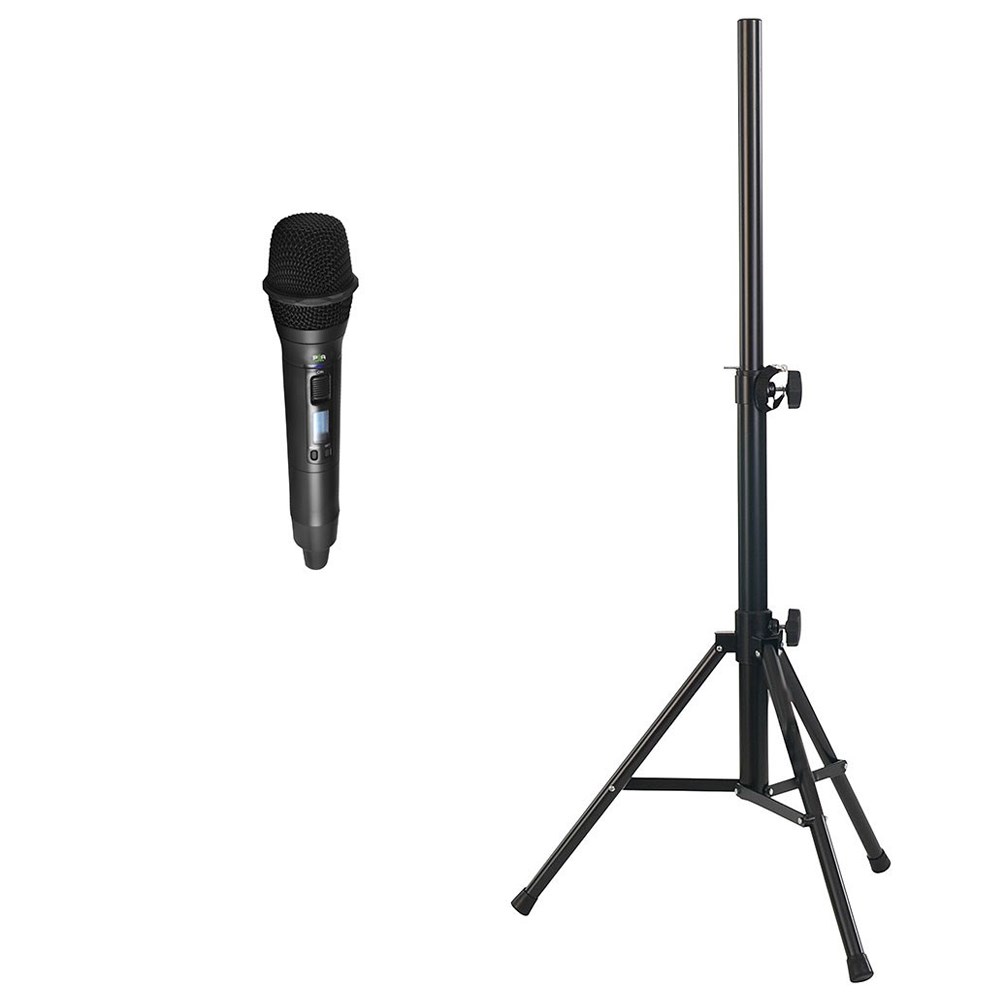

• 2 x Wireless Receiver & 2 x Wireless Handheld Microphone.
• 2 x Speaker Stands.

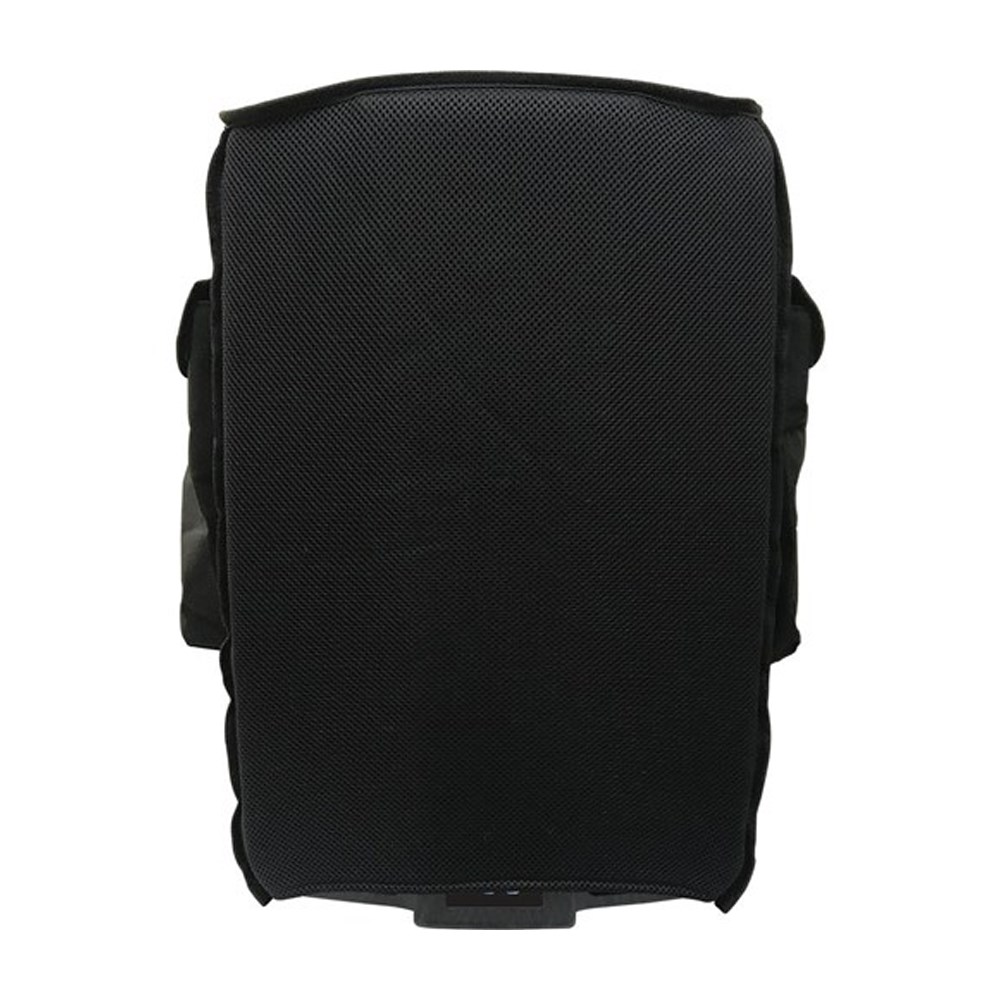

• 2 x Dust Covers.

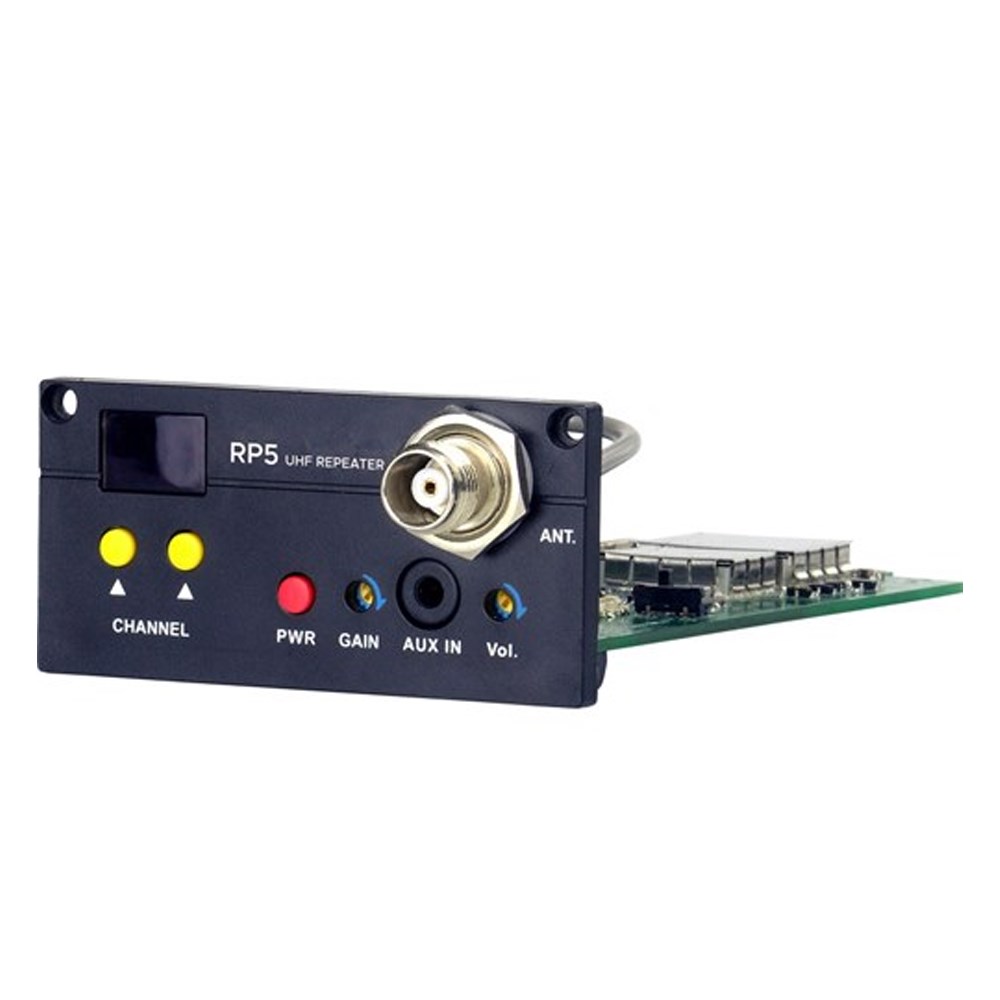

• 1 x Wireless Repeater (RP5).
PLEASE NOTE: One Microphone will work across two PA's.
