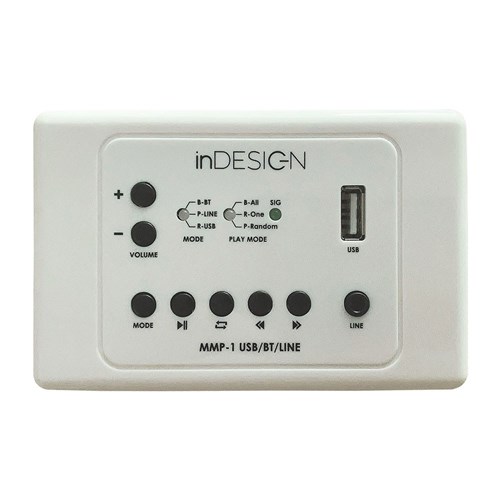

The MMP-1 is a universal remote wall panel featuring three input modes: BT, Line input and USB audio file playback. It can used as a remote input to distributed audio systems, or on its own connected directly to mixers, amplifiers or speaker systems. Users have the choice to connect the MMP-1 locally in an installed space or connect to devices remotely via inexpensive CAT6A twisted pair cabling.
The MMP-1 is the right choice for users who wish to install multiple streaming receivers within close vicinity to one another. With a few simple steps, users are able to rename the BT ID to differentiate installed MMP-1’s throughout buildings such as schools, universities, office spaces and other training facilities.
Specifications
- Product Mounting: Compatible with Clipsal 2000 series mounting accessories
- AC Power Supply to PoE : AC 100-240V 50/60Hz
- MMP-1 Power Supply DC: PoE 24VDC 1.0A
- BT Revision: BT 4.2
- BT Range: 20 metres
- USB Flash Drive: Flash drive capacity MAX 128GB / FAT32 partition
- USB Player: MP3: Stereo files @ 128k, 192k, 320k and VBR bit rates
- Front panel line input: TRS 3.5mm unbalanced jack (0.3v level, impedance 10K, internal mono sum)
- Rear panel line input: JST3 balanced (0.5v level, impedance 10K, mono input)
- Rear Panel line output: JST3 balanced (0.5v level, impedance 600ohms, mono output)
- PoE line output: RJ45 balanced (0.5v level, impedance 600ohms, mono output)
- Product Dimensions HxWxD: 76 x 118 x 32 mm (Clipsal 2000 series style mounting)
- Product Weight: 100 grams
- Shipping Dimensions HxWxD: 255x200x70 mm
- Shipping Weight: 660 grams
- Included Accessories: PoE power supply , Line in and out cable, RJ45 line cable
ZNAMMP1
