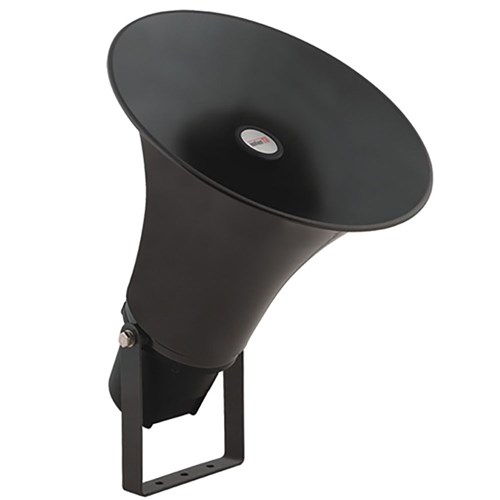

Inter-M 50w Paging Horn Speaker

HS-50 delivers high sound pressure and precise control of the sound.

It is not easily bent or broken as it is made up of very strong materials such as aluminium and by zinc die-casting.

It is movable from 240° up-and-down and 160° left to right. It is designed to mount on the wall very easily.

Features

• Excellent intelligibility & loudness for voice and tone signalling
• High directivity
• Good reliability
• Environment resistant for outdoor and indoor use
• High-efficiency driver with proven performance
• Transformer equipped for versatile high impedance line applications

• Type: Horn Speaker (Circle)
• Driver: 82mm Diaphragm
• Power Handling (AES): 50W
• Input Power:
  100V: 50/25W
  70V: -
• Impedance:
  100V: 200/400Ω
  70V: -
  LOW: -
  Power Selection: -
• Frequency Response(-10dB): 240Hz ~ 6kHz
• Frequency Range(-20%): 350Hz ~ 6kHz
• Sensitivity (1W/1m, 1kHz) *1: 109dB
• Maximum SPL[Cont] *1: 126dB
• Nominal Dispersion(HxV):
  1kHz: 82˚
  4kHz: 38˚
• Input connection: INPUT Line Direct Connection
• Enclosure Material: Aluminium
• Enclosure Colour (Front): Dark Grey
• Weights (Net): 3.1kg
• Dimensions (Net, WxHxD, mm): 320(Ø) x 350(D)
• Weather Resistant: IP65
• Flame Resistant: ○
• Certification: CE
• Included Accessories: NUT M10 NI, WASHER PLATE, ASS.Y BOLT 2EA Each + Bracket, Base

*1: At floor test
