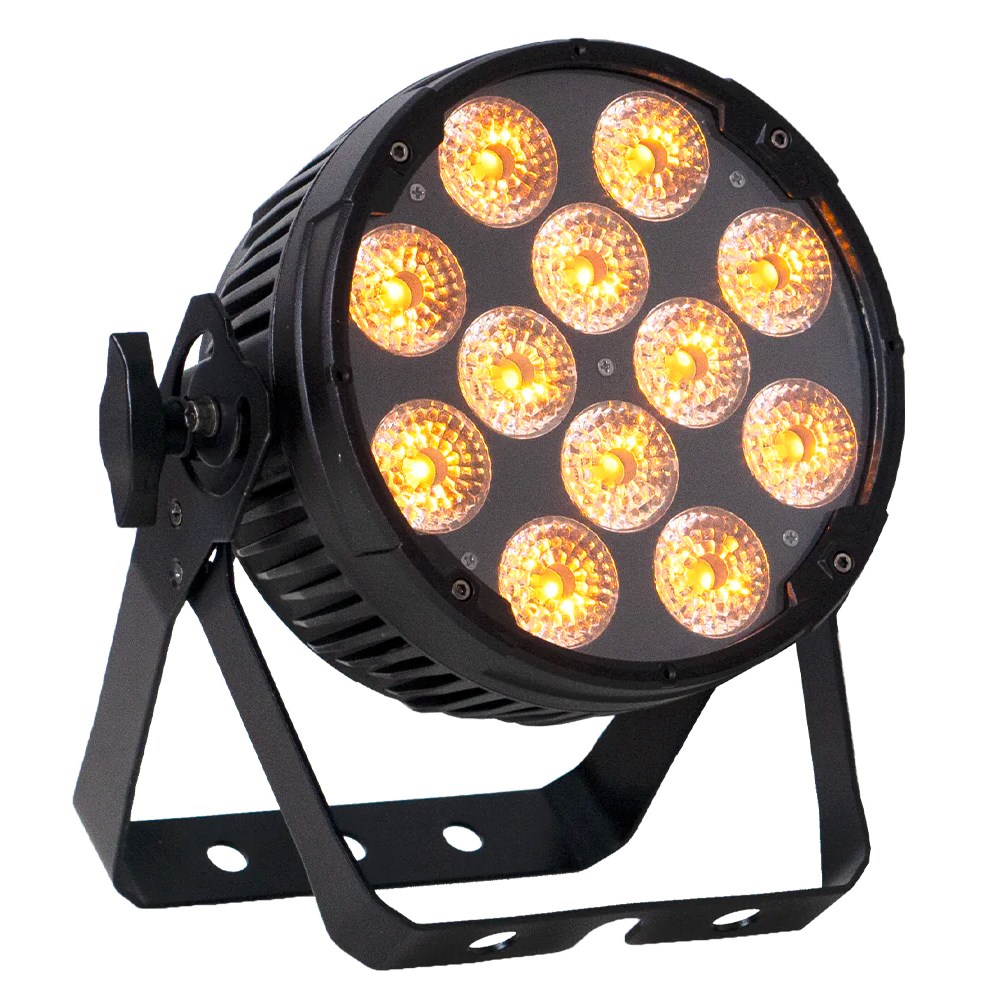

Event Lighting's most popular pro par, the PAR12X12 is a versatile 6-in-1 fixture in a tough die cast aluminium housing.
ZEVPAR12H
Photometrics
- Light Source: 12x 12W RGBWAU LEDs.

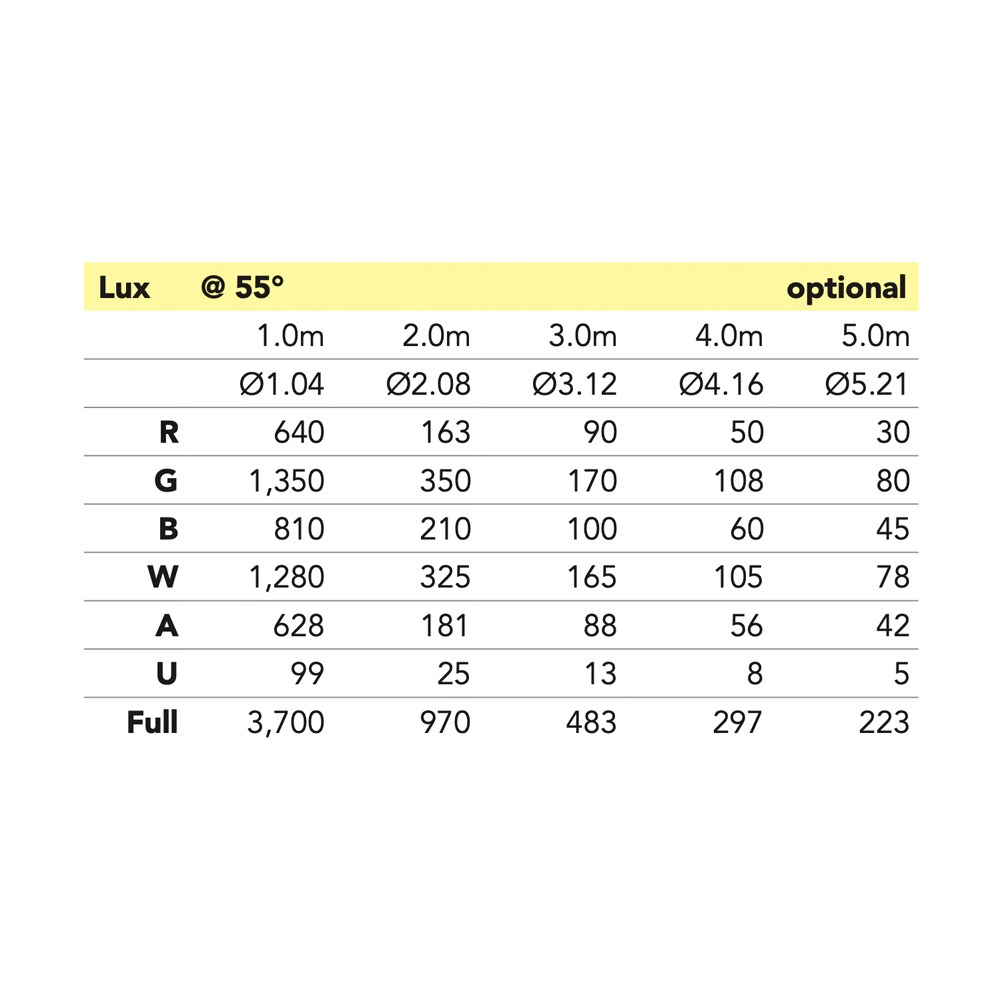

- Beam Angle: 30° (optional: 55° ).

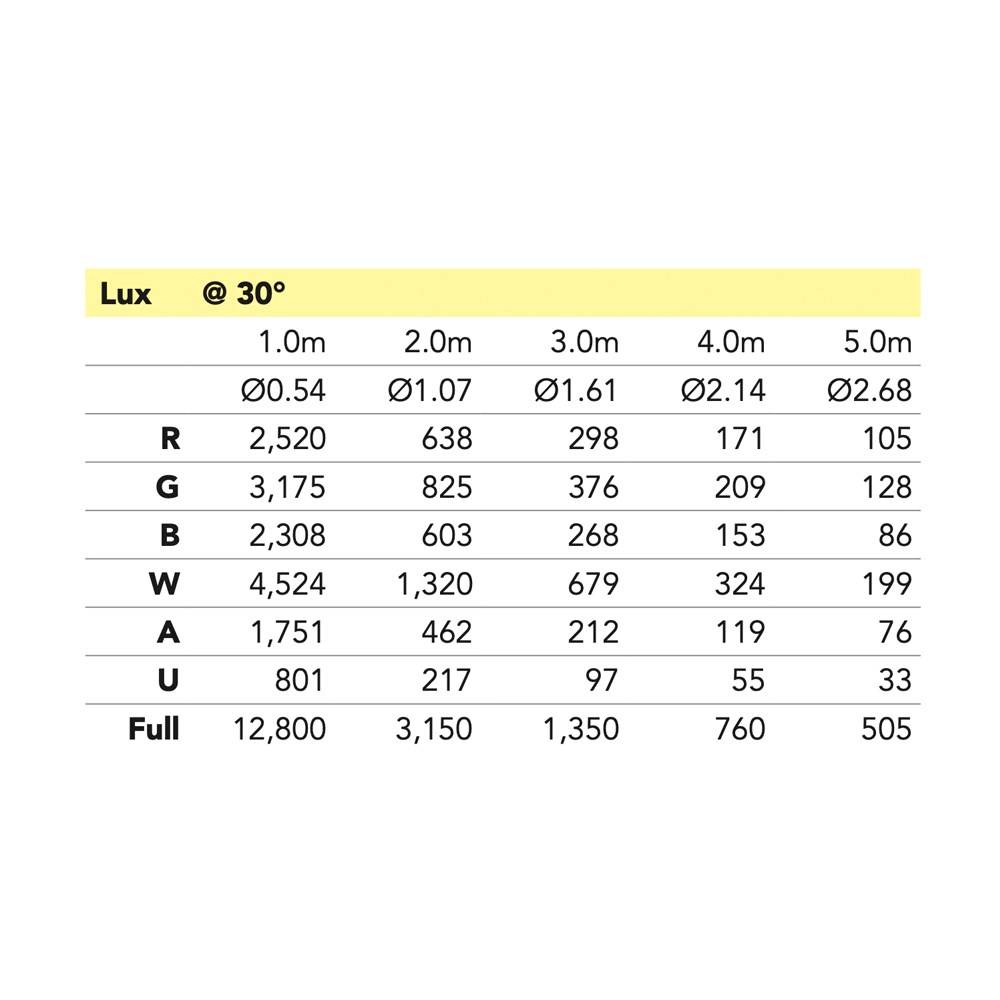

- Output: 3,150 lux @ 2.0 m RGBWAU full on.
- PWM: 2,940 Hz.
- LED Life: 50,000 hours.
Effects
- Dimming: 8-bit Dimming Control / 4 x 16-bit Dimming Curves.
- Strobe: 1~30 Hz.
Power
- Input Voltage: 100V~240 V AC, 50/60Hz, 120 W.

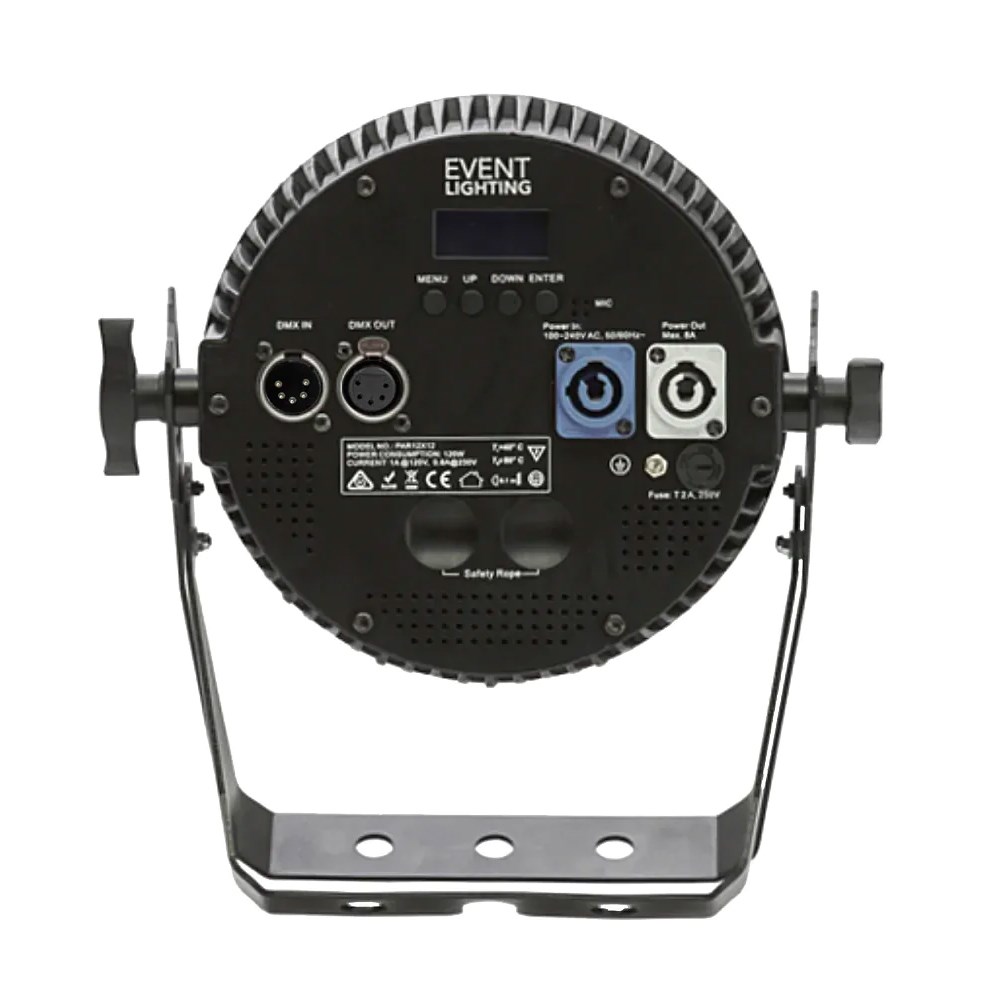

- Power Connection: Neutrik® powerCON in/out.
Control
- Operational Modes: DMX, manual, auto, sound active, master/slave, multi-fixture chase.
- Display: 4-button LCD control panel.
- DMX Protocol: DMX512.
- DMX Channel Mode: 2 / 3 / 6 / 8 / 12.
- DMX Interface: 5-pin XLR.
- Software Upgrade via DMX: Yes.
Housing
- Housing Materials: Die-cast aluminium, matte black finish.
- Cooling: Fanless Cooling.

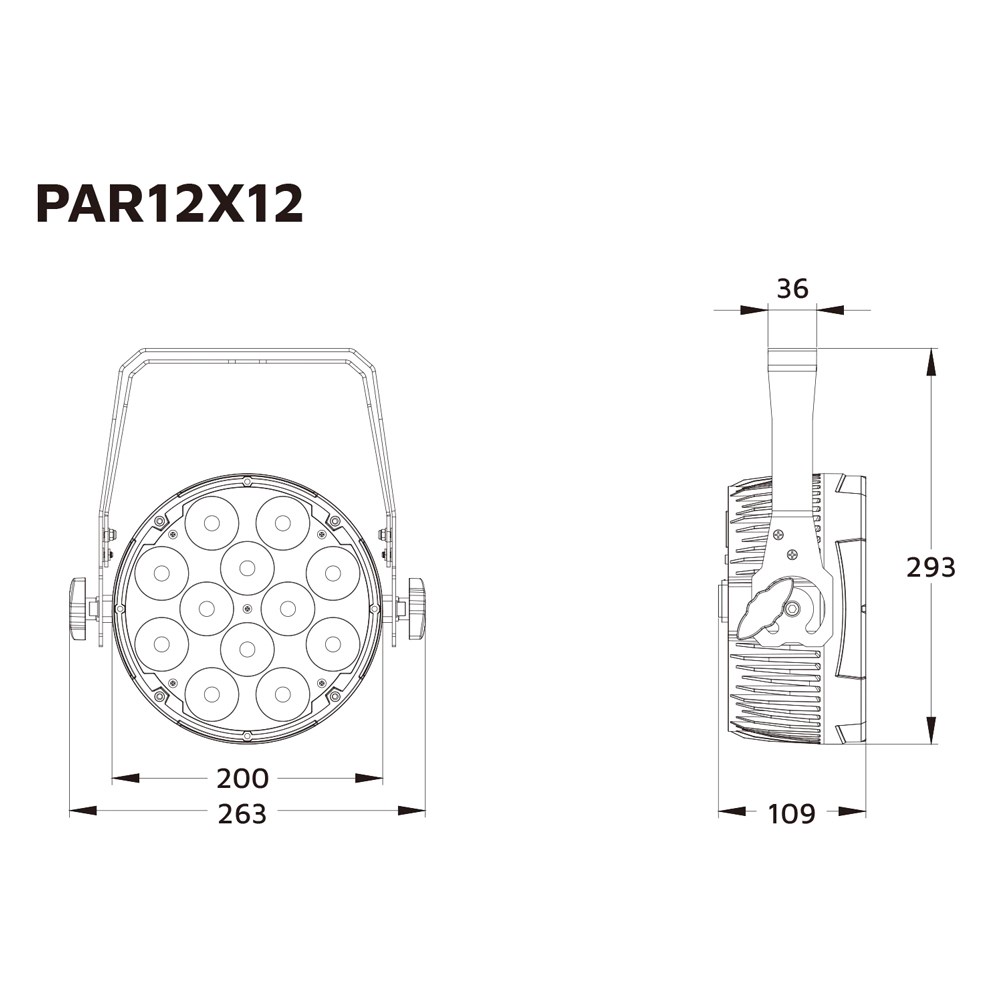

- Dimension: 263 x 293 x 109 mm.
- Net Weight: 3.2 kg.
MISC

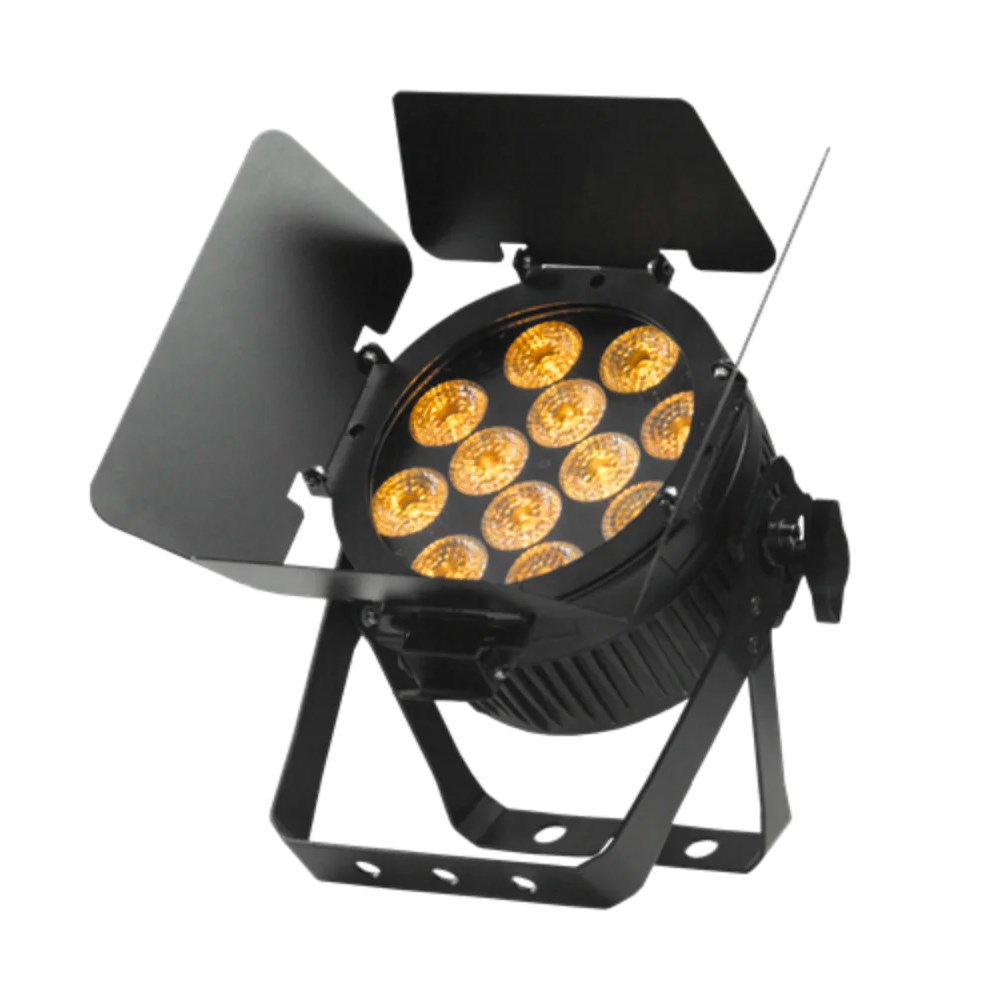

- Barn door: PAR12RBD.
- Road case:PAR12BDCASEWC, PAR12CASEWC.
