SEE WHAT YOU’VE BEEN MISSING

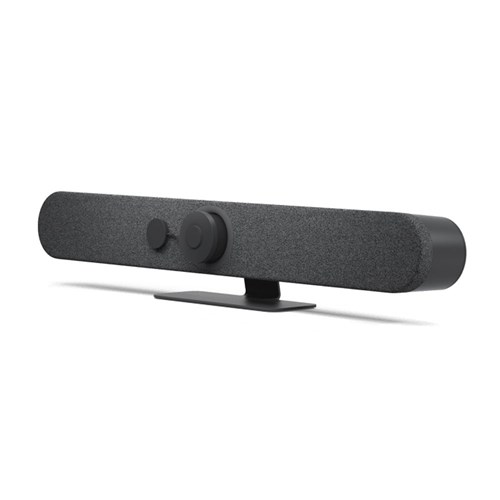

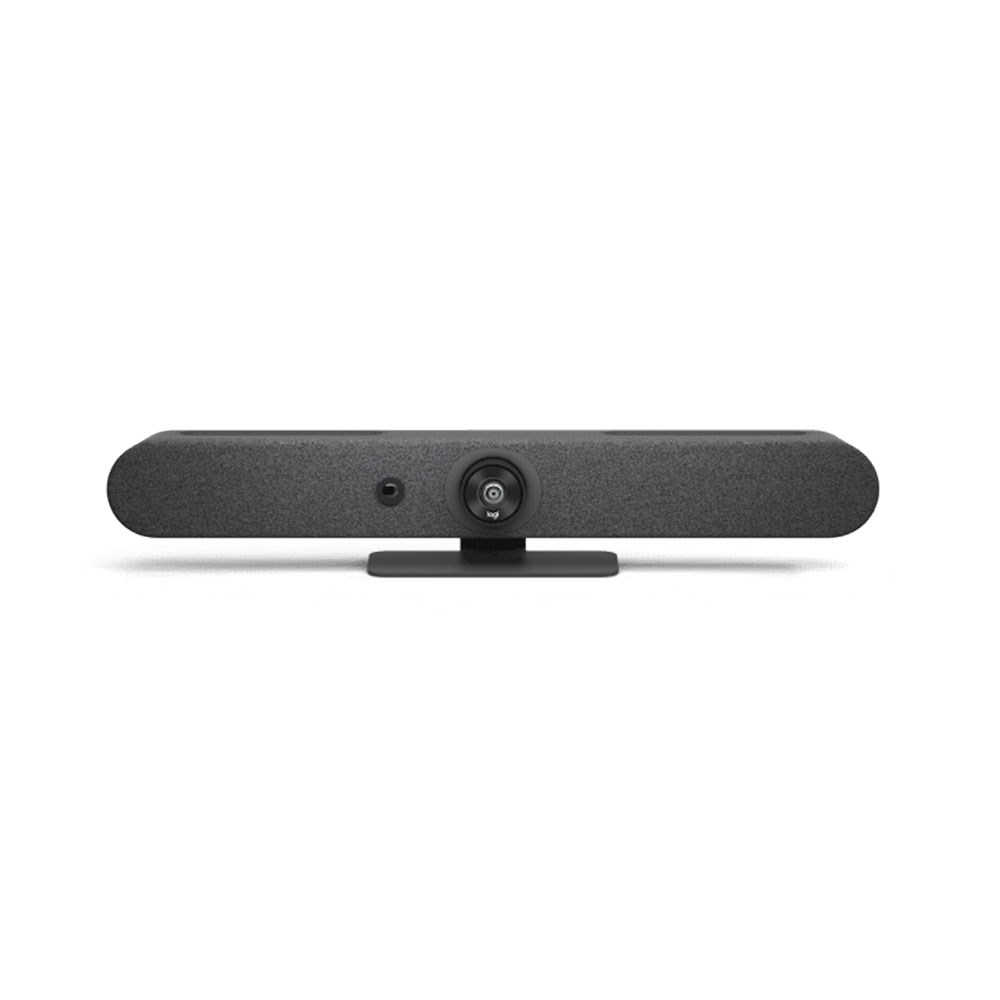

The Logitech Rally Bar Mini is a premier all-in-one bar for small to medium rooms.

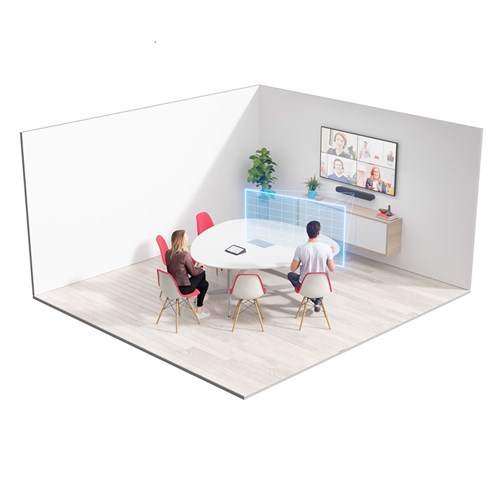

With a dual-camera system and RightSight 2 auto-framing technology, Rally Bar Mini welcomes remote participants to the conversation. Choose Grid View to eliminate empty space and frame each person in their own stream, Speaker View to highlight the active speaker, or Group View to capture everyone in the room.
LOOKS TRUE-TO-LIFE

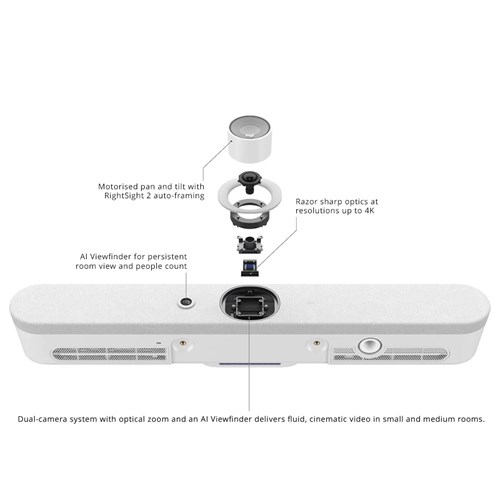

- An innovative dual-camera system with optical zoom and an AI Viewfinder delivers fluid, cinematic video in small and medium rooms.
SOUNDS AWESOME

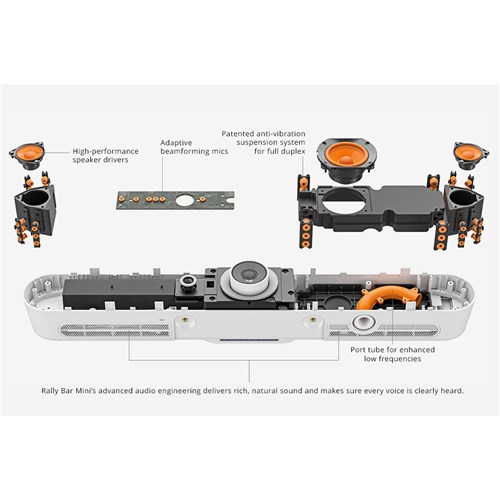

- Rally Bar Mini’s advanced audio engineering delivers rich, natural sound and makes sure every voice is clearly heard.
GREAT CONVERSATIONS START HERE
- AI Sound Optimisation: Auto-level loud and soft voices – while suppressing unwanted noise – with AI-based RightSound technology that improves over time.

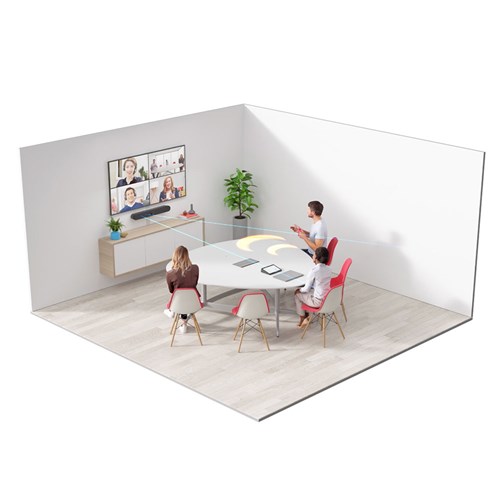

- Adaptive Beamforming: Focus on the active talker with high-precision beamforming mics.
EXPAND THE CONVERSATION

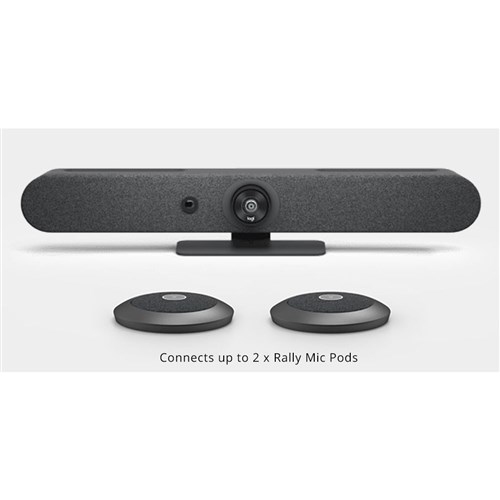

- Easily accommodate larger spaces with Rally Mic Pods (ZKO989-000430).
- Out of the box, Rally Bar Mini has a pickup range up to 7m, which you can significantly extend by adding up to three Mic Pods.
WORKS WITH YOUR PREFERRED PLATFORM
- Start your meeting with just one touch, seamlessly connecting Rally Bar Mini to your preconfigured room solution.
- Platform examples: Microsoft Teams, Zoom, Google Meet, RingCentral.
DESIGNED FOR DEPLOYMENT AT SCALE
- Appliance Mode: Run supported video conferencing applications – such as Zoom®, Microsoft Teams® and others – directly on the device with no computer or laptop required.
- USB Mode: Connect via USB to virtually any PC or Mac with no additional software needed.
- Cable Management: Ensure clean, confident installs with secure cable retention and minimal cabling.
- Mounting Options: Take advantage of multiple mounting options to deploy Rally Bar Mini quickly and easily across all your medium to large rooms.
SIMPLE TO MANAGE

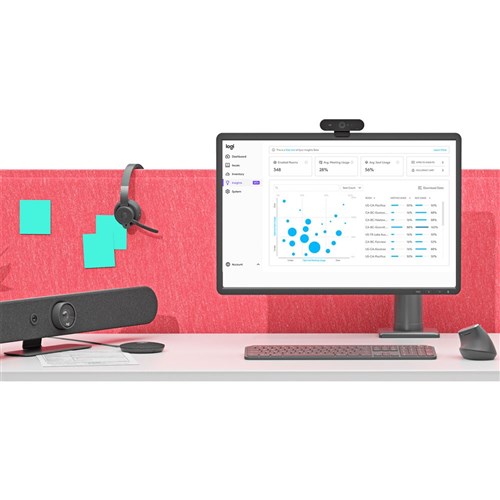

- Easily manage your Logitech video collaboration devices with Logitech Sync.
- Monitor room health, deploy updates, and modify settings all from a single cloud-based platform.
- With Sync Insights, you can see how meeting spaces are utilised over time.
Powered by CollabOS
- Deploy video collaboration solutions at scale with CollabOS, the secure operating system powering Logitech appliances and select devices.
ZKO960-001343
DIMENSIONS
- Height: 91.4mm
- Width: 719mm
- Depth: 101mm
- Lens Depth: 18.5mm
- Weight: 4.03kg
COMPATIBILITY
- Internet Connection: Wired or wireless
- USB Mode: Windows® 11, Windows 10, the two most recent versions of macOS
- Appliance Mode: Room solution software license (not included)
TECHNICAL SPECIFICATIONS
Certifications & Compatibility
Certifications:
- Microsoft Teams Rooms on Android™ (for small sized rooms)
- Microsoft Teams Rooms on Windows (for small sized rooms)
- Zoom Room™
- Tencent Meeting Rooms
- Google Meet (ChromeOS/USB)
Appliance Mode: Supports compatible video conferencing software in appliance mode (no PC required), including:
- Microsoft Teams Rooms on Android™
- Zoom Rooms™
- RingCentral Rooms™
- Tencent Meeting Rooms
USB Mode: Plug-and-play USB connectivity with virtually any video conferencing application
GENERAL SPECIFICATIONS
- Built-in Components: 6 beamforming microphones, PTZ camera, 3 speakers, AI Viewfinder, cable management & retention system, table stand, Logitech CollabOS platform
- Enclosure: All-in-one enclosure with integrated table stand and patented speaker suspension system to eliminate vibration-induced camera shake and audio interference
- Device Management: Logitech Sync
- Displays Supported: 2 (up to 1080p)
- Display Resolution: Up to 1080p
- Network Protocol Support: IPv4, IPv6
- Proxy Support: IP based Proxy, FQDN based Proxy, Proxy using PAC file
Camera
- Resolution: 4K, 1440p, 1080p, 900p, 720p, and SD at 30fps
- Pan: Motorised ±25°
- Tilt: Motorised ±15°
- Zoom: 4X HD zoom
- Diagonal Field of View: 120°
- Horizontal Field of View: 113°
- Vertical Field of View: 80.7°
- Total Room Coverage (field of view + pan and tilt): 163° Horizontal x 110° Vertical
Woofer Speaker
- Driver: 70mm
- Sensitivity: 92 dB SPL @1W, 99dB SPL @8.0W, both +/-2dB at ½ metre
- Rated Power: 8W
- THD: 1kHz <2% at 1W
- Speaker Sampling Rate: 48 kHz
- Impedance: 4 Ohms
Midrange Speakers
- Drivers: 2 x 43mm
- Sensitivity: 84 dB SPL @1W/1M
- Rated Power: 4W
- THD: 1kHz <2% at 1W
- Speaker Sampling Rate: 48 kHz
- Impedance: 4 Ohms
Microphones
- Frequency Response: 90Hz – 16kHz
- Sensitivity: >-36dBFS +/-1 dB @ 1Pa
- Microphone data rate output: 48KHz
- Pickup Range: Up to 7m
- Beamforming Elements: Six omnidirectional digital MEMS microphones forming five adaptive acoustic broadside beams
- Audio processing: AEC (Acoustic Echo Cancellation), VAD (Voice Activity Detector)
- Noise suppression: AI based de-noising algorithm
- Add-on Mics: Supports up to 3 additional Rally Mic Pods and 2 Rally Mic Pod Hubs for larger conference rooms
RightSense™ Technologies
- RightLight: Renders natural skin tones for each participant
- RightSight: Primary camera frames the active speaker while the AI Viewfinder captures everyone in the room
- RightSound: Distinguishes speech from other sounds to auto-level voices while suppressing background noise and echo
- Grid View: Detect and frame all meeting participants in order to create equitable hybrid meeting experiences
Interfaces
- HDMI Out: 2 (up to 1080p)
- HDMI In: 1
- MAC: 3 x Type A, 1 x Type C
- Network: 10/100/1G Ethernet
- WiFi: 802.11a/b/g/n/ac
- External Mic Input: Yes (proprietary input supports optional Rally Mic Pod, Rally Mic Pod Hub, and Rally Mic Pod Extension Cable)

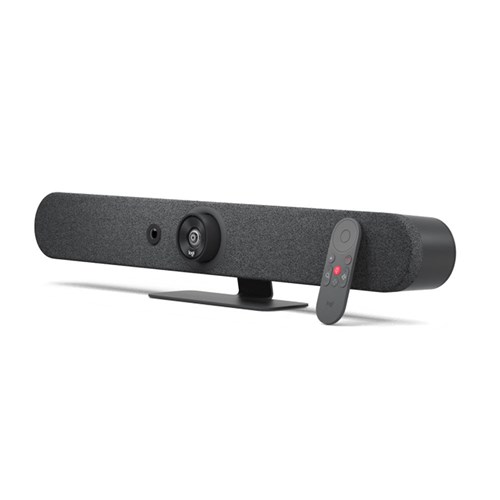

- Remote Control: Bluetooth® Low Energy
Power & Cables
- Power supply: Auto-sensing
- Operating Voltage/Power: 100-240V, 19V, 4.74A
- Power Supply Dimensions: 127mm x 51mm x 30mm
- DC Cable: 1.5m
- AC Cable: 1m
- HDMI 1.4 Cable: 2m
- USB A to USB C 3.0 Cable: 2.2m
Environmental
- Operating Temperature: 0 to 40 °C
- Storage Temperature: -40 to 70 °C
- Humidity: 10 to 95%
- BTU/hr: 57 idle, 64 in meeting
Security
- Full Disk Encryption: AES-128
- Data Encryption: Symmetric Keys, PKI
- Device Identity: Protected by device attestation
- Device Access: Authenticated using API
- Key Protection: Arm TrustZone, RPMP
Accessories
- Mounts: Wall Mount for Video Bars (ZKO952000044), TV Mount for Video Bars (ZKO952000041)
- Audio: Rally Mic Pod (ZKO989-000430), Rally Mic Pod Hub (ZKO939-001647), Rally Mic Pod Mount (ZKO952-000002), Rally Mic Pod Extension Cable (ZKO952000047)
- Connectivity: Logitech Strong USB (10m, 25m, 45m)
- Touch Controller: Logitech Tap and Tap IP (compatibility may vary)
