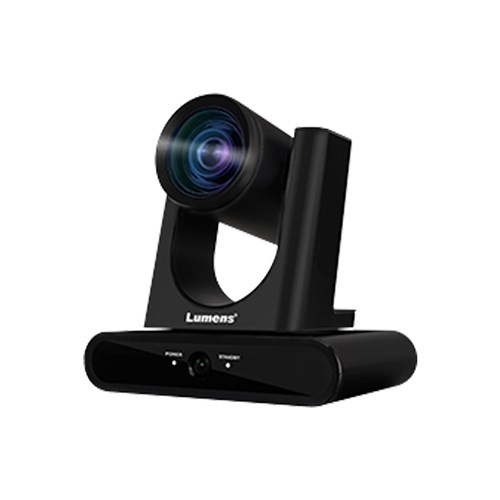

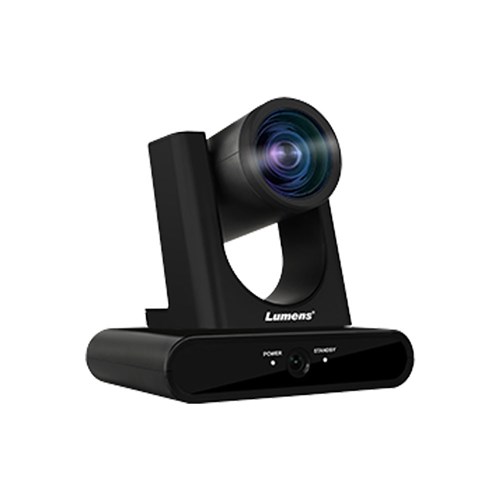

Lumens VCTR30 Dual Optics Auto-Tracking PTZ Camera Black

Product Code: VCTR30B

Share this product
Unit Description
Each
Usually Ships 5-7 Days
Login for School Account Pricing

$3459.50 inc GST
Increase value Decrease value
Quantity in cart:
Qty Each Save %
  • Description
  • Specifications
  • Downloads
  • Contact Us

AI Auto-Tracking Camera

  • AI-Powered Tracking with Human Detection

  • 3 Tracking modes and 2 Framing modes

  • HDMI, Ethernet and USB simultaneous output

  • 1080P 60fps with 12x Optical Zoom

  • Mount upright or inverted

Automatic Production
VC-TR30 is perfect for use in meeting rooms and presentations because of its intelligent auto-tracking and auto-framing modes. Both enable hands-off video capture, with the camera following a presenter or framing the shot around delegates present in the meeting room.

Flexible Lens
The 12x zoom lens has a 72.5° horizontal field of view at its widest setting, facilitating its use in small video studios, meeting spaces or presentation stages. It works in partnership with the high sensitivity sensor to deliver excellent video quality in all lighting conditions.

Gesture Control Tracking Method
The VC-TR30 features advanced gesture control. When the presenter raises their hands, the tracking target will switch automatically. You can also manually change the tracked subject by selecting the individual via the web interface.

Single Cable Installation
The VC-TR30's Ethernet connection is multi-purpose. Connected to a PoE-enabled switch, the network cable can transport video, power and control signals. This makes installation extremely quick and cost-effective.


ZLUVCTR30B
  • PTZ Camera Sensor: 1 / 2.8" 2.16MP CMOS
  • PTZ Camera Video Format
      • 1080p60
      • 1080p50
      • 1080p30
      • 1080p25
      • 720p60
      • 720p50
  • Video Output (HD) Interface: HDMI / Ethernet / USB 3.0
  • Optical Zoom: 12x
  • Digital Zoom: 12x
  • PTZ Camera Horizontal Viewing Angle: 72.5°
  • PTZ Camera Vertical Viewing Angle: 40.8°
  • Diagonal Viewing Angle: 83.2°
  • PTZ Camera Aperture: F1.6 ~ F2.8
  • PTZ Camera Focal Length: f = 3.9mm ~ 46.8mm
  • Shutter Speed: 1 / 25 ~ 1 / 10,000 sec
  • Minimum Object Distance: Wide = 1000mm , Tele = 1500mm
  • Video S / N Ratio: > 50dB
  • Minimum Illumination: 1 lux (F1.6, 50IRE, 30fps)
  • Focus System: Auto, manual
  • Gain Control: Auto, manual
  • White Balance: Auto, manual
  • Exposure Control: Auto, manual
  • WDR: Yes
  • 3D NR: Yes
  • Image Flip: Yes
  • Auto Tracking: Everywhere / Stage / Partition
  • Auto Framing: Everywhere / Partition
  • Gesture Control: Yes
  • Panoramic Camera Sensor: 1 / 2.8" 2MP CMOS
  • Panoramic Camera Video Format: 720p30
  • Panoramic Camera Horizontal Viewing Angle: 111°
  • Panoramic Camera Vertical Viewing Angle: 62°
  • Panoramic Camera Aperture: F2.4
  • Panoramic Camera Focal Length: 3.1mm
  • Panning Angle: +170 ~ -170°
  • Panning Speed: 0.2 ~ 120° / sec
  • Tilting Angle: +90 ~ -30°
  • Tilting Speed: 0.2 ~ 80° / sec
  • Preset Positions: 256
  • IP Stream
  • PTZ Camera
      • Main: 1080p60
      • Second: 720p30
      • Panoramic Camera: 720p30
  • IP Compression: H.264
  • USB Output
  • 1080p30
  • USB Compression
  • MJPEG
  • IP Protocol
  • HTTP / RTSP / RTMP / RTMPS / SRT
  • PoE
  • Yes (IEEE802.3af)
  • Audio Input
  • Line In / MIC In
  • Audio Output
  • Ethernet / USB 3.0 / HDMI
  • Audio Compression Format
  • AAC / PCM

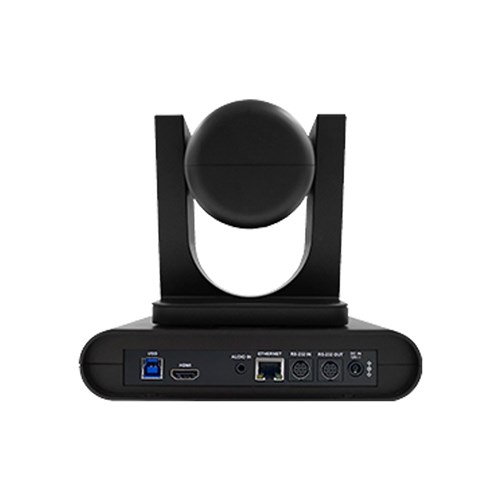

  • Interface
  • RS-232 / Ethernet / USB 3.0
  • Protocol
  • VISCA / ONVIF
  • UVC
  • 1.1
  • UAC
  • Yes
  • DC In
  • 12V + / - 20%
  • Power consumption
      • PoE: 11W
      • DC In: 10W
  • Body Color: Black / White
  • Weight: 3.3lbs (1.5 kg)
  • Dimension
      • 7.5" x 7.3" x 5.4"
      • (190 ×185 ×138 mm)
