Make your online lectures and virtual events more engaging. Our USB Fusion hardware lets you easily combine cameras, screenshares and media file sources into attractive live presentations for remote education, webinars, live streaming, video conferencing and more.
Capture and Combine Sources

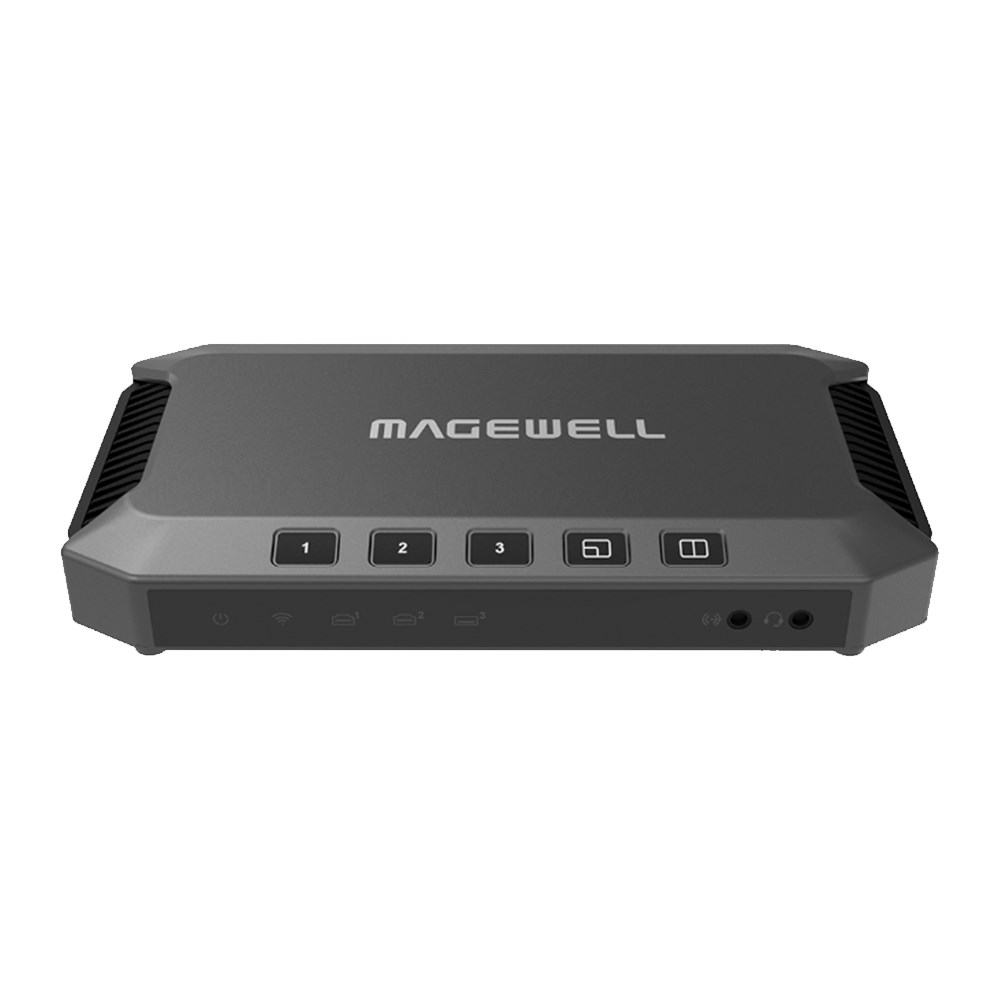

USB Fusion lets producers and presenters switch between multiple live and file-based sources, or to combine two inputs simultaneously into one output (picture-in-picture or side-by-side) for capturing into popular software via its USB 3.0 interface. USB Fusion offers two 1080p60 HDMI inputs plus one USB webcam input. It also supports wireless sharing input protocols including AirPlay®, Google Cast™ and Miracast™. Users can easily switch or combine sources via on-device buttons or the companion tablet app.
Engaging Presentations
Using the USB Fusion companion app, teachers and event hosts can create presentation playlists in advance and incorporate pre-recorded audio and other media files into their sessions. The app’s annotation tools can be used to mark up presentation materials, and the annotations can be exported to a file for sharing after the class or event. Users can also draw on the video in real-time like a telestrator. Sessions can also be recorded through the app to the USB Fusion hardware’s built-in storage for subsequent playback.
Simple Setup for Easy Deployment
Systems integrators can also remotely manage multiple USB Fusion devices via Magewell Cloud.
Engaging Presentations
As a standard UVC/UAC device with automatic, driver-free installation, USB Fusion is immediately compatible with a wide range of software.
- Users or administrators can configure and manage the hardware and presentations through a browser-based web interface or programmatic API.
- Supports two HDMI inputs and one USB webcam input up to 1080p at 60fps
- Switches between sources or combines two simultaneously into one output
- Companion tablet app for more advanced features
ZML350600000
Scene Input
HDMI

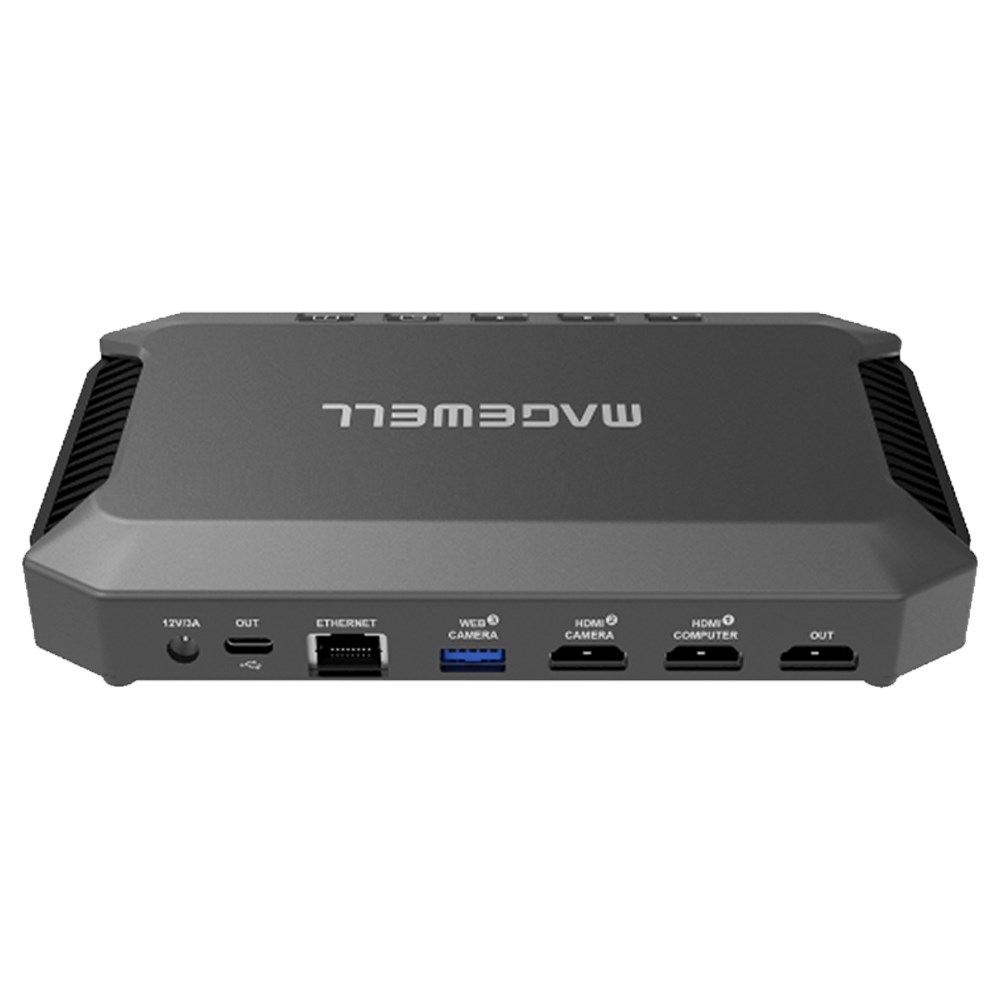

- Port: 2x HDMI 1.4a Type-A port (HDMI 1 / HDMI 2)
- Resolution/frame rate: up to 2048x1080p, 60fps
- Color depth: 8-bit, 10-bit, 12-bit
- Video sampling: RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2
USB
- Port: 1x USB 3.0 Type-A port (WEB CAMERA 3)
- Resolution/frame rate: up to 2040x1080p, 60fps
- Codec: YUYV, H.264, MJPG, UYUV, NV12, etc.
Screencast
- Protocols: AirPlay, Miracast, Google Cast
- Supports up to 4 devices casting simultaneously
Imported files
- Video file: MOV, MP4, MKV
- Image file: JPEG, PNG, BMP
- PDF file
- Resolution: up to 4K, 8-bit
- Codec: H.264, HEVC (H.265)
Web page
- Transfer protocol: HTTP, HTTPS
Audio Input
- Line in port: 1x 3.5mm jack, 2-channel, 48 KHz, 16-bit
- Headset port: 1x 3.5mm jack (CTIA standard), 2-channel, 48 KHz, 16-bit
- Up to 8-channel 24-bit HDMI-embedded audio at 192KHz
- Audio from WEB CAMERA 3 port: Up to 4-channel 24-bit audio (The audio is disabled by default, and can be enabled on Web UI.)
- Audio embedded in video files
- Audio file: MP3, M4A, WAV
- Audio of web pages
- Audio of screencast sources
Video Output
USB OUT
- Port: 1x USB 3.0 Type-C port
- Resolution: 1920x1080, 1280x720, 640x480
- Frame rate: 60fps, 30fps, 15fps
- Video sampling: YUYV, NV12, ARGB
HDMI OUT
- Port: 1x HDMI 1.4a Type-A port
- Output image: HDMI 1, HDMI 2, or PROGRAM image
- Output resolution: configurable, up to 2048x2048 (Actual resolution options can be limited by the negotiation result between the device and monitor.)
Streaming via RTMP:
- Resolution: 1920x1080, 1280x720
- Frame rate: 60fps, 30fps
- Bitrate: up to 20 Mbps
Audio Output
- 1x 3.5mm jack: headset port
- Format: 2-channel, 48 KHz, 16-bit
- Standard: CTIA
- Audio output via WEB CAMERA 3 port: 2-channel (The audio is disabled by default, and can be enabled on Web UI.)
- Audio output via USB OUT port: 2-channel, 48 KHz, 16-bit
- Audio output via HDMI OUT port: 2-channel, 48 KHz, 16-bit
- Audio output via RTMP streaming: 2-channel, 48 KHz, 16-bit
Video Processing & Production
HDMI source
- Video/audio signal data: auto extracted
- Color space/quantization range: calibration supported
- De-interlacing: Bob, motion adaptive, motion compensated
- EDID: self-definition supported
USB source
- Format: selects according to the source
- Resolution/frame rate: selects according to the source
Screencast source
- Supports turning on/off screencast protocols on Web UI
- Supports secure screencast by using on-screen code or custom password
- Supports up to 4 simultaneous wireless sources combined into a screencast scene layout
- Supports single-view or multi-view display, with a dynamic layout for multi-view display
- Supports customizing background color
- Supports dynamically crop black bars of the screen for Android devices casting through Miracast
- Supports displaying the screencast device name, image size and frame rate
PDF source
- Supports turning pages, visiting hyperlinks, zooming in and out, etc.
Web page source
- Supports browsing web pages, visiting hyperlinks, zooming in and out, etc.
- Supports inputting information through the remote keyboard
Auto conversion of frame rate/color space
Source switching: auto, manual
Scene compositing: picture in picture, side by side
Scene editing: crop, mirror, scale, rotate, and more
Annotation: pens, shapes, text, and more, generated as notes for exporting
Presentation: supports creating, importing, exporting, managing presentations, etc.
GFX: supports adding and applying text or picture (JPG, JPEG and PNG) as GFX into the presentation
FTB: supports fading to black or image
Audio Processing & Production
- Auto resampling
- Auto audio de-embedding and embedding
- Controls volume of audio output and each audio input
- Supports microphone gain
Recording and Screenshot
- Supports manual and schedule recording to local storage, with default format of 1080p60, H.264, MP4 (Recording parameters and schedule can be configured on Web UI)
- Screenshot format: JPEG, 1920x1080
- Storage space: 128 GB
- Cloud backup: supports automatically or manually uploading recorded video and screenshots to Google Drive
Provided Software
- USB Fusion App
- Creates, edits and controls presentations
- Supports HD, SD, Auto and customized preview quality
- Provides USB Clicker to control the PowerPoint on the computer connected to the USB OUT port
- Supports PTZ control, applying to the VISCA compatible PTZ camera connected to the HDMI port
- Takes and manages recordings and screenshots
- Supports the Watcher mode, which allows up to two watchers viewing the scene and telestrating while one operator controlling the device
- OS version: iOS 12 and later, Android 7.0 and later
- Web UI
- Configures and manages the device
- Creates, controls and manages presentations and media files
- Configures recording parameters and sets schedule recording
- Source: supports ISO recording by selecting the source to record, and selecting whether to only record the image
- Encoder: sets resolution (up to 1080p60), bitrate mode (CBR or VBR), audio (up to 48Khz, aac, 256kbps), etc.
- Storage: supports local storing as MP4 or MOV files, and splitting files by time or size
- Schedule: sets recording schedule to implement recording automatically during the specified time period
- Manages recordings and screenshots, and supports auto or manual backup to Google Drive
- Configures RTMP server, and starts/stops streaming
- Sets the login mode of the App to the device, including free login, password to login and pairing to login, and enables the Watcher mode to set the number and permissions of watcher
- Customizes preview quality for the App
- Sets sleep
- Supports registering Magewell Control Hub for centralized management
Network
- Ethernet: 1x RJ45 port, 10/100/1000 Mbps Base-T
- Wi-Fi network: IEEE 802.11 a/ac/ax (only 5G supported), Station mode or AP mode supported
- USB network: 1x USB OUT port
Compatible Software
- Skype, Zoom, Microsoft Teams, Google Meet
- Other UVC/UAC compliant, DirectShow/V4L2/AVFoundation compatible software
Compatible OS
- Windows: Windows 7 and later, Server 2008 and later (x86 & x64)
- Linux: Linux system with kernel 2.6.35 or later (x86, x64 & ARM)
- Mac: OS X 10.9 and later, macOS 10.12 and later
System Requirement for Screencast*
AirPlay
- iPhone/iPad: iOS 12.3 or later
- Mac: macOS 10.14 or later
Miracast
- Windows 10 or 11
- Android 4.2 or later
Google Cast
- Windows: Core i3 or equivalent, Windows 7 or later
- Apple OS X: Macbook Pro 2010 or newer, Macbook Air 2011 or newer, OS X 10.9 or later
- Chrome OS: All 2014 models and later, 2013 Haswell-based models, and Samsung Chromebook 2

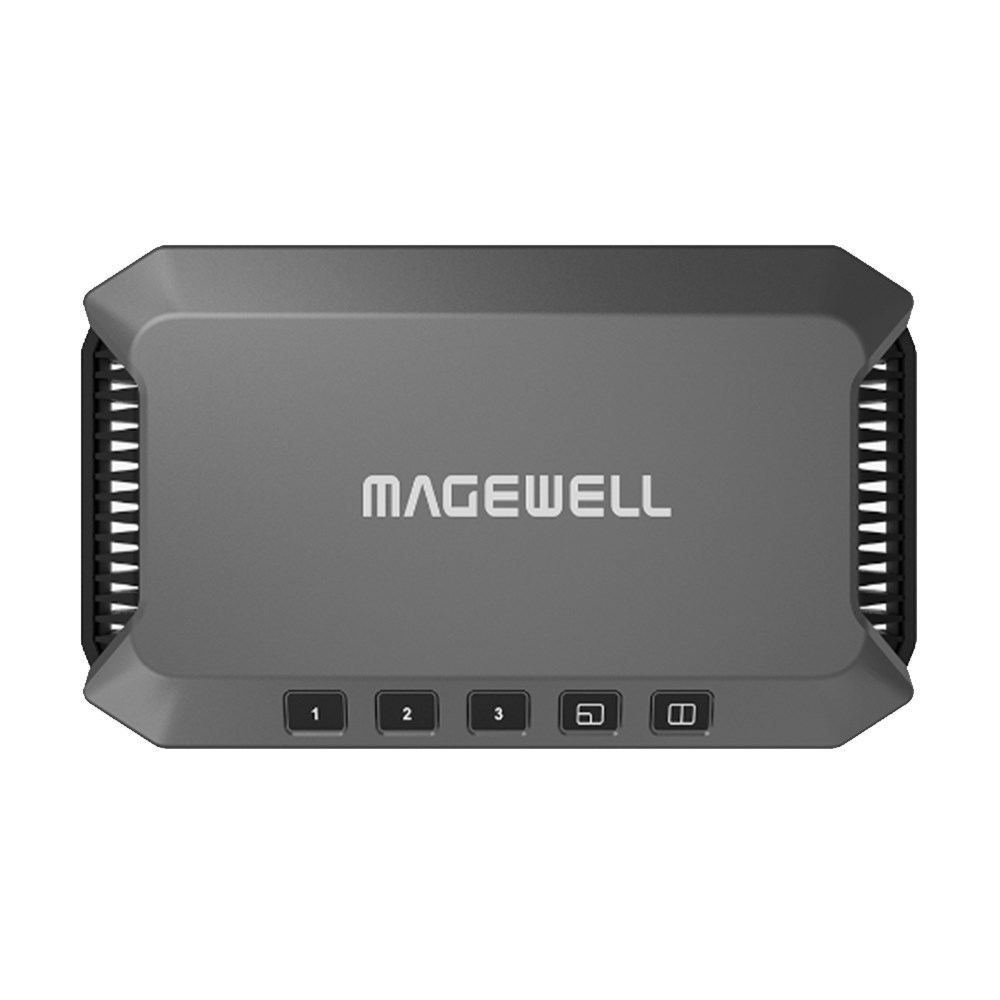

Buttons
- Switches and composites sources
- Switches screencast images and displays screencast guide
- Starts or stops pairing for “Pairing to login” mode
- Wakes up the device when it is sleeping
- Supports customizing functions

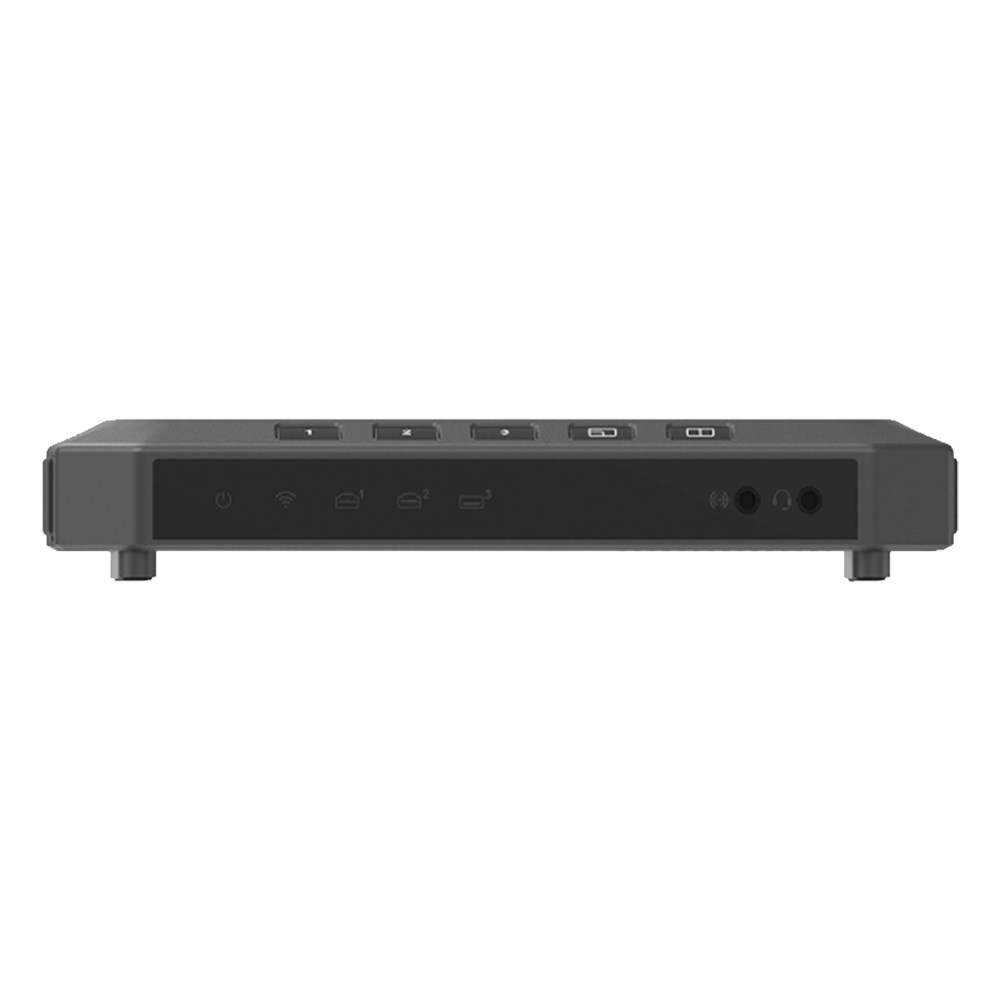

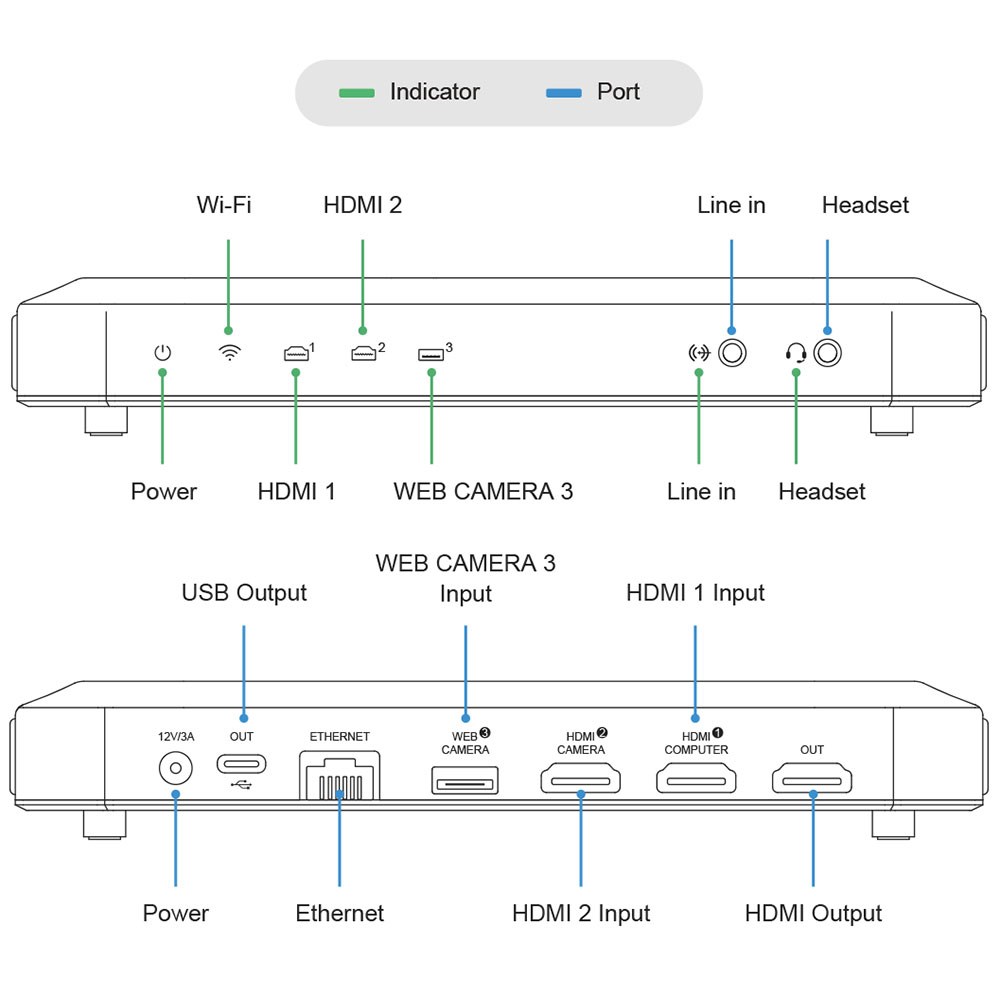

LED Indicators
Power
- On: power on
- Off: power off
Wi-Fi / HDMI 1 / HDMI 2 / WEB CAMERA 3
- On: connected
- Off: not connected
Line-in / Headset
- On: connected
- Pulsing: not connected
Power
- Power port: 2.1mm x 5.5mm jack
- Power input: 12V/3A
Power Consumption
- Static working status: 10W
- Full-load working status: 17.5W
- Static sleeping status: 9.8–10w
- Full-load sleeping status: 14.5–14.8W
Dimensions
Accessories
- 1x Power adapter
Output: 12.0V/3.33A
- 1x USB 3.0 cable
Working Environment
- Operating temperature: 0 to 50 deg C
- Storage temperature: –20 to 70 deg C
- Relative humidity: 5% to 90% non-condensing
