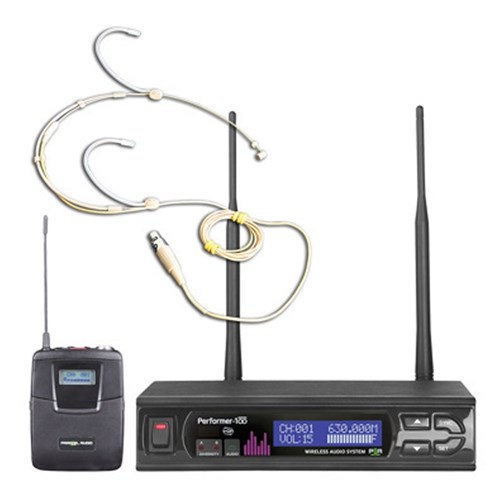

Parallel Audio Headset Wireless System Package

UHF 100-Frequency 2-Way Synchronising True Diversity Receiver

Features

• 100 factory preset user-selectable UHF frequencies.
• Advanced microprocessor control, excellent RF design with improved signal performance for interference free multi-channel operation.
• Patented IrDA technology for 2-way sync between transmitter and receiver.
• SCAN function automatically locates the next clean frequency.
• More than 10-12 non interfering channels can be operated simultaneously within a selected 25MHz bandwidth.
• Diversity design for high sensitivity, high selectivity, and high image/spurious rejections.
• LCD display on the receiver shows selected frequency.
• Antennas can be either rear or front mounted.
• Anti-interference Pilotone control and RF noise squelch circuitries.
• RF & AF LED indicators.
• Balanced (XLR) x 1 / unbalanced (O6.3mm) x 1 audio outputs.
• Half-rack metal chassis, mountable with optional mount kit(PA-WRK-1 for 1 unit, PA-WRK-2 for 2 units).
• Matching transmitters: HH6100, BP6100.
• True diversity reception for best performance and reliability.
• Receiver provides power for Parallel Audio antenna systems to enhance reception range and signal stability.

Specifications

• Channel: Single
• Chassis: EIA standard 19" 1/2U
• Frequency range: UHF 520-675MHz (3 available bands)
• Bandwidth: Up to 25MHz
• Receiving mode: True Diversity
• Peak deviation: ±40kHz
• Channel sync: 2-way (receiver - transmitter)
• Sensitivity: S/N > 80dBm at 10dBμV
• S/N ratio: > 110dB (A)
• T.H.D. : < 0.5% @ 1kHz
• Frequency response: 50Hz - 18kHz
• Receiving antenna: Rear Panel. Detachable
• Preset channels: 100
• Oscillation mode: PLL synthesised, frequency stability ≤± 0.005% (-10 – +60C)
• Squelch: Pilotone & Noise-cancelling dual-squelch circuit
• Audio output adjustment: Gain control circuit for adjustment of output volume
• Output connector: Balanced XLR and unbalanced 6.3Ø
• Power supply: 12V DC, 1.0A
• Power consumption: 12W
• Dimensions (mm): 200 (W) x 44 (H) x 150 (D)
• Weight (kg): 0.63

* NOTE: The above specifications are subject to change without prior notice.
