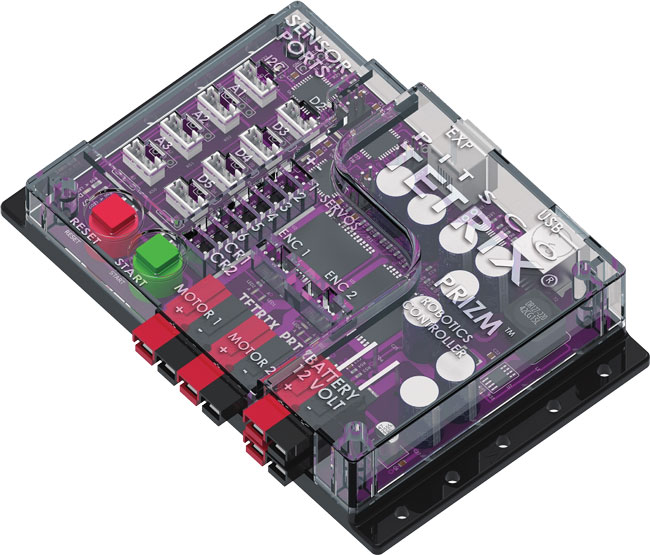

TETRIX^® PRIZM™ Robotics Controller

This programmable robotics controller, specifically developed for the TETRIX^® MAX system, enables teachers and students to program their robots using the Arduino Software (IDE).

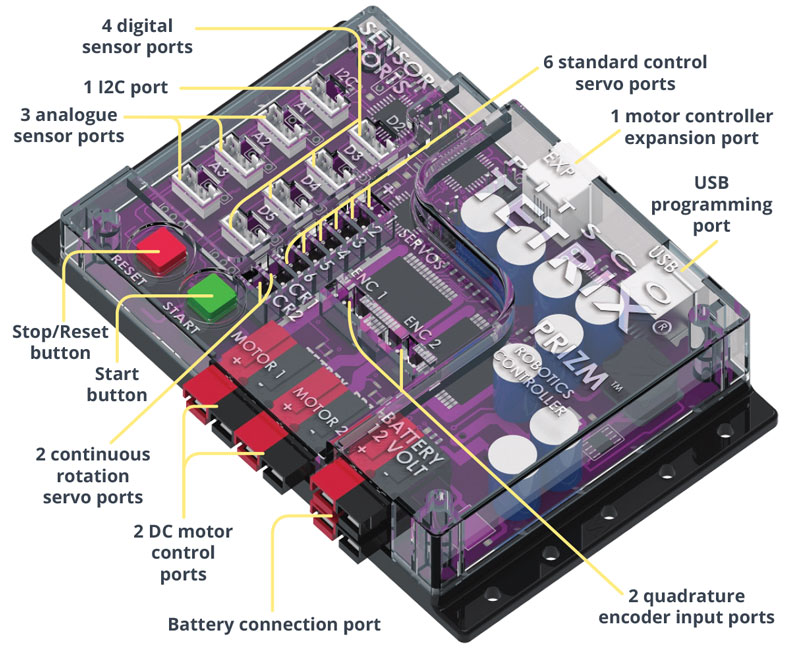

Features:
• 32 KB flash programmable memory.
• ATmega328P processor with Arduino Optiboot bootloader installed.
• 4 digital sensor ports (D2 can be used as a serial port) and 3 analog sensor ports.
• 1 i2C port, 1 USB programming port, 1 motor controller expansion port, and 2 quadrature encoder input ports.
• 2 high-current DC motor control ports.
• 6 standard control servo ports and 2 continuous rotation (CR) servo ports.
• Battery connection port (additional port used to daisy-chain power to other devices).
• Programmable Start button (green) and a non-programmable Stop/Reset button (red).
• Comes with USB cable, power switch, and motor cables.
• Includes Quick-Start Guide with instructions for downloading the Arduino Software (IDE), which is compatible with Windows, Mac OS X 10.7 or newer, and Linux devices that have a USB port.
