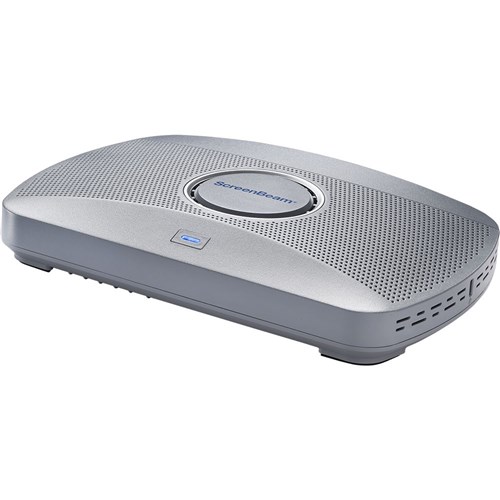

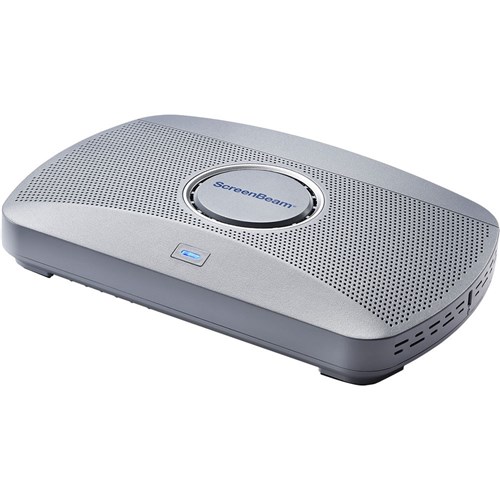

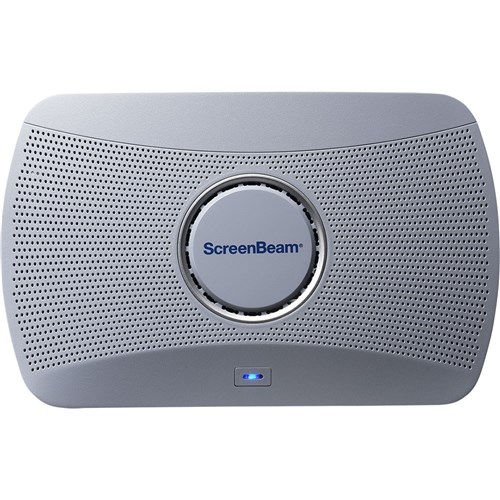

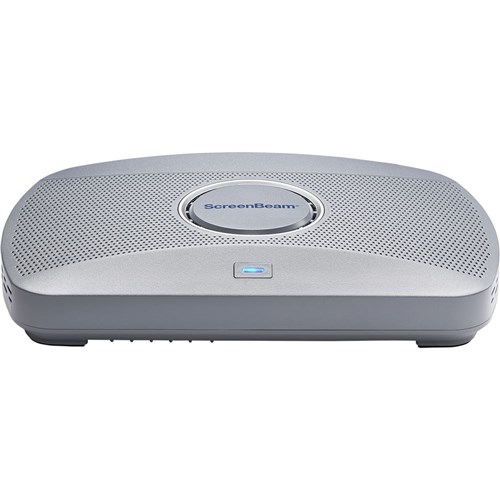

ScreenBeam 1000 4K EDU GEN2 Wireless Display Receiver

Smart wireless presentation and collaboration designed for modern classroooms.

The ScreenBeam 1000 EDU Gen 2 is a Smart device designed to adapt and scale to modern K-12 classroom experiences. With its intuitive native wireless screensharing and an integrated collaborative whiteboard application, the ScreenBeam 1000 EDU Gen 2 enhances teacher and student engagement for better learning outcomes.

ScreenBeam delivers app-free screen sharing on any device eliminating the need to download an app or keep a cable or dongle nearby. Teacher and guest devices have multiple ways to connect including local Wi-Fi mode, Miracast™, Airplay, GoogleCast, provides configurable connectivity using peer-to-peer Wi-Fi Direct or over infrastructure. The new Whiteboard by ScreenBeam application enables collaborative Whiteboard interactivity without complex device connectivity. Running directly on the ScreenBeam device, Whiteboard is simply launched from the connected Interactive Flat Panel and requires no connected computer. ScreenBeam 1000 EDU Gen 2 delivers an affordable, easy teacher and student experience, with advanced technology to ensure simplicity and ready to expand with your growing technology needs.

Key features

• Present from laptop, tablet or smartphone wirelessly
• Native screen mirroring or extended desktop solution; no app, no dongle
• Increased Memory and Storage for future expandability
• Quick Switch Mode to switch between presenters without disconnecting
• Optional configurable,secure, and isolated Wi-Fi hotspot
• Integrated HTML 5.0-based digital signage player
• Windows native wireless touch and inking, with ScreenBeam Ghost Inking™
• Integrated Whiteboard application with advanced interactive features
• Multi-View Mode allows up to four devices shared on-screen
• 4K and interactive flat panel ready

Minimum System Requirements

Chromebook Teacher Device
OS: Windows 10/11 (64-bit), macOS 10.10, or Chrome OS 81.0.4043.103
CPU: Fourth gen Intel Core i5 or ARM-based equivalent for Chromebook

Chromebook Student Device
OS: Chrome OS 81.0.4043.103
CPU: Intel Celeron N3060 or any ARM

Windows Teacher Device
OS: Windows 10/11 (64-bit) build 1709 (or later)
CPU: Fourth gen Intel Core i3 or AMD equivalent

Windows Student Device
OS: Windows (64-bit) build 1709 (or later)
CPU: Intel Celeron N3010 or AMD equivalent

Hardware

• Video: H.264 compression
• Audio: LCPM 2.0
• Resolution1: Up to 4K30
• Ethernet: 10/100/1000-BASE-T RJ-45 LAN (non-concurrent with Network Bridge)
• Wireless:
  • • Miracast and Local Wi-Fi Mode: 802.11ac dual-band 3×3 MIMO
    • Network Bridge: 802.11ac dual-band 2×2 MIMO (non-concurrent with Ethernet)
• Authentication: WPA-PSK (TKIP)
• Protocol:
  • • WPA2-PSK (AES)
    • PEAP-MSCHAP V2
    • EAP-TLS

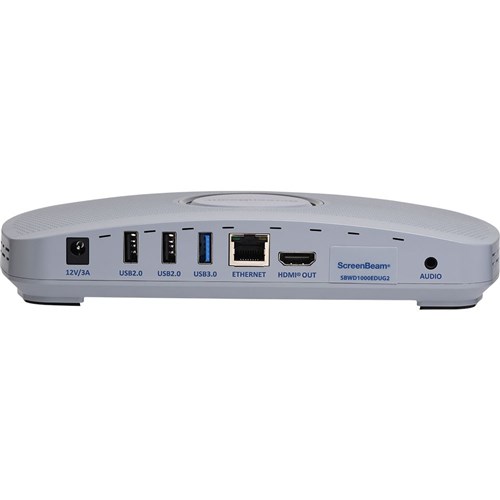

• Interface:
  • • 1 x HDMI Output
    • 1 x VGA Output
    • 1 x Analog 3.5mm audio Output
    • 2 x USB 2.0 Host Type-A
    • 1 x USB 3.0 Host Type-A
    • 1 x DC Power Jack
• Content Protection2: HDCP 2.x
• Power:
  • • Input: 12VDC, 3A
    • Consumption: 8.4W (typical), 36W (peak)
• Dimensions: 8.66 x 5.66 x 1.99 inch (220 x 144 x 50.5 mm)
• Operating temperature: 0º – 40º C (32º – 104º F)
• Storage temperature: -20º – 85º C (-4º – 185º F)
• Operating humidity: 20 – 80% non-condensing
• Storage humidity: 10 – 90% non-condensing

Compatible OS/Device
Miracast P2P wireless display requires certified device with either:

• Windows 10/11 build 1607 (and later) or Windows 8.1
• Android 4.2 (and later)

Wireless display over network requires device with either:

• Chrome OS 81.0.4043.103 (and later)

• Windows 10/11 build 1709 (and later)

• Windows 7 (and later)

• macOS 10.10 (and later)

• iOS 11 (and later)

Warranty: One year
