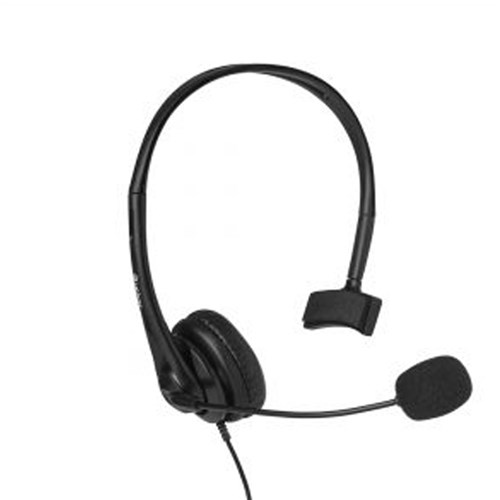

Univox Mono Headset with Boom Microphone

Mono headset with an angled 4-pole 3.5 mm plug. Equipped with a noise-cancelling microphone on a microflex boom for versatile positioning. Replaceable leatherette ear cushion and optional microphone windscreen available. Suitable for quiet environments due to its single-side driver design.

Features

• High-quality on-ear headsets and headphones designed for GoTalk transceivers
• Comfortable leatherette ear cushions and adjustable headbands
• Replaceable cushions and windscreen for hygiene and longevity
• Versatile connectivity options with standard angled plugs
• Noise-cancelling microphone on HS2 and HS3 for clear communication
• Suitable for a range of environments from quiet to moderately noisy

PHYSICAL

• Color: Black
• Cord Length: 1 m (39.37 in.)
• Weight: HP1 62.5 g (2.20 oz.)
•  HS2 46 g (1.62 oz.)
•  HS3 68.5 g (2.41 oz.)
• Shipping Weight: HP1 70.5 g (2.48 oz.)
•  HS2 54 g (1.90 oz.)
•  HS3 76.5 g (2.70 oz.)

CONNECTIONS

• Connector: HP1 male 3.5 mm (TRS) standard headphone
•  HS2/HS3 male 3.5 mm (TRRS) CTIA compliant

AUDIO – MICROPHONE (HS2/HS3)

• Type: Electret condenser
• Polar Pattern: Bi-directional, noise-cancelling
• Impedance: 900 - 2.2 kOhms typical
• Sensitivity: -45 ±3 dBV/Pa @ 1 kHz
• Bandwidth: 100 Hz - 10 kHz
• Bias: 1.8 - 10 VDC

AUDIO – DRIVER (HP1/HS2/HS3)

• Driver Size and Type: ø 30 mm, dynamic
• Headphone Impedance: 32 ohms ±20% @ 1 kHz
• Headphone Bandwidth: 20 Hz - 20 kHz
