Upgrade OPS to i7 for V7 Series IFP

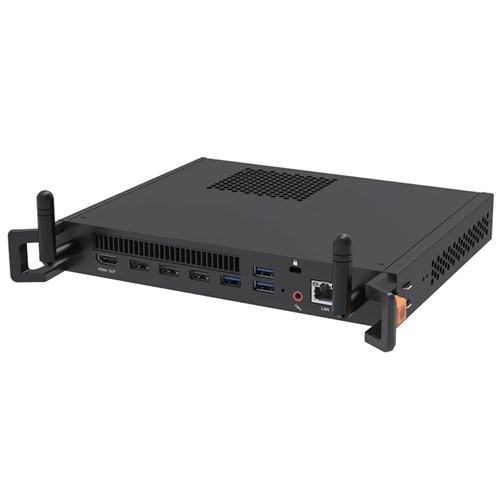

MT71F is modular PC which could be easily inserted into MAXHUB Interactive Flat panel , with 12th Generation Intel® Core™ i7 Processor and pre-installed the MAXHUB OS based on windows system.

General Specification

• Device Type: Pluggable PC Module
• Operating System: Windows 11 Pro
• CPU: 12th Generation Intel® Core™ i7 Processor -12650H
• GPU: Intel UHD Graphics (supports 4K@60Hz)
• RAM: 16G , DDR4
• Internal Storage: 512G
• Touchscreen Compatibility: Yes
• TPM: 2.0
• Application: MAXHUB OS
• Kensington Slot: Yes

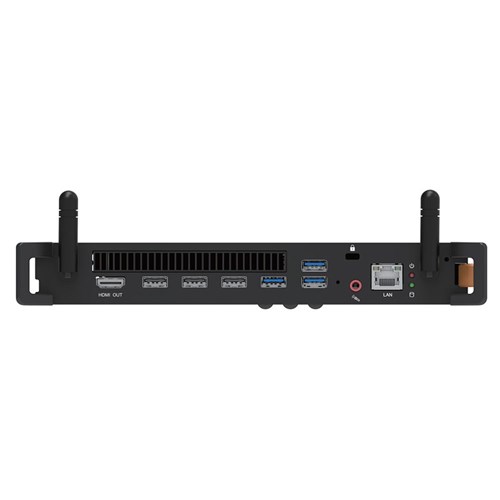

Connectivity

• HDMI Out (2.0): 1 (up to 4K@30fps)
• USB 3.0 Type-A: 3
• USB 2.0 Type-A: 3
• RI45 (Ethernet, 1000M): 1
• Microphone in: x1
• Kingsington Security Slot: 1

Power

• Power Requirements: 18V DC
• Power Consumption Maximum: <110W
• Power Consumption Standby: <2.3W

Environmental Condition

• Operating Temperature: -10°~55°
• Storage Temperature: -20°~60°
• Operating Humidity: 10% - 90% RH

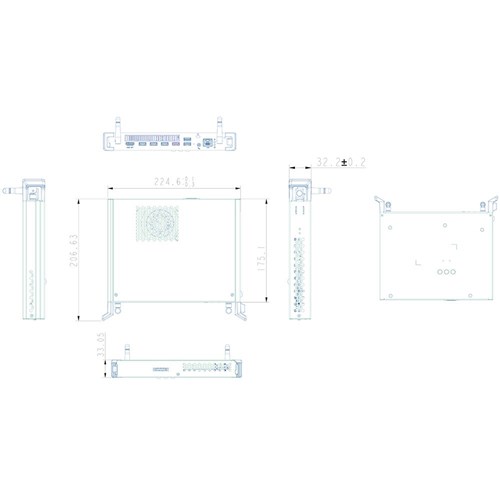

Physical Specification

• Product Dimensions (WÅ~HÅ~D): 244.5 Å~ 207.2 Å~ 32 mm / 9.67 Å~ 8.16 Å~ 1.26 inch
• Package Dimensions (WÅ~HÅ~D): 314 Å~ 256 Å~ 70 mm / 12.36 Å~ 10.08 Å~ 2.76 inch
• Net Weight: 1.2 kg
• Gross Weight: 1.79 kg

Warranty

Standard Warranty: 3-year Warranty
