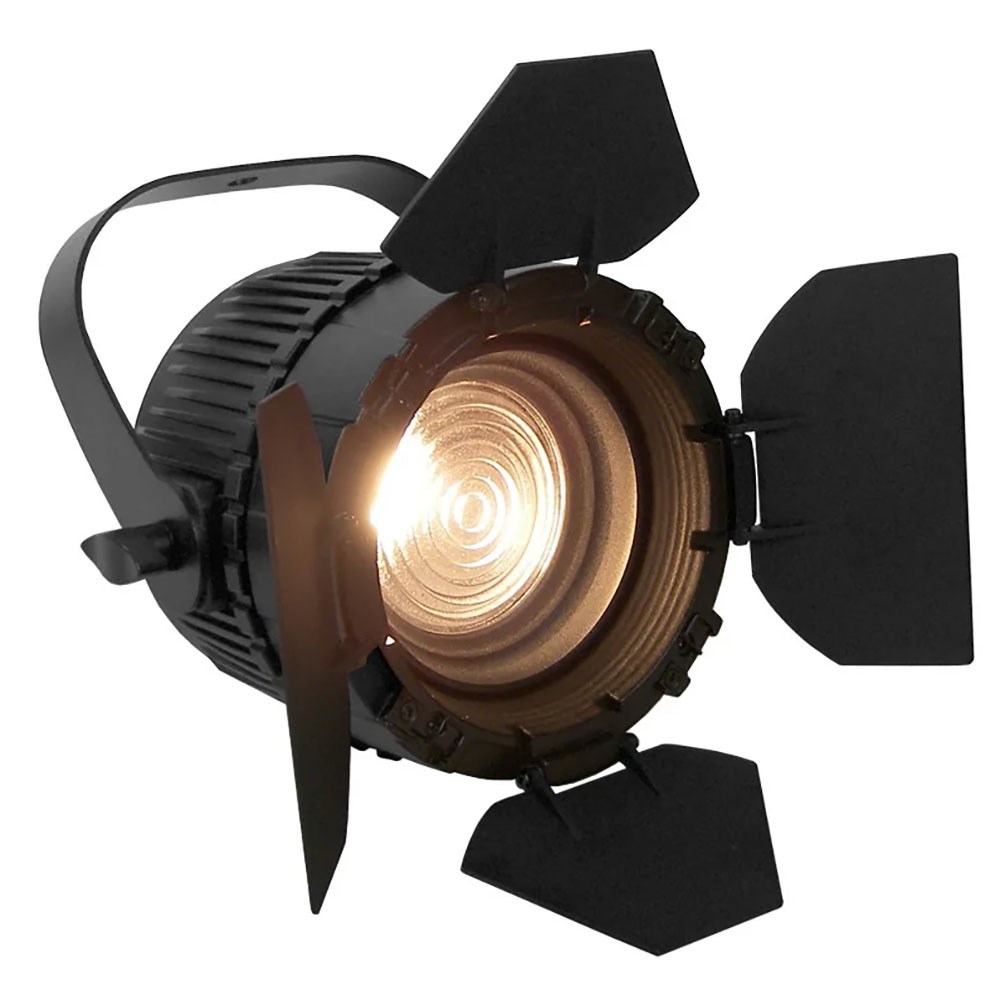

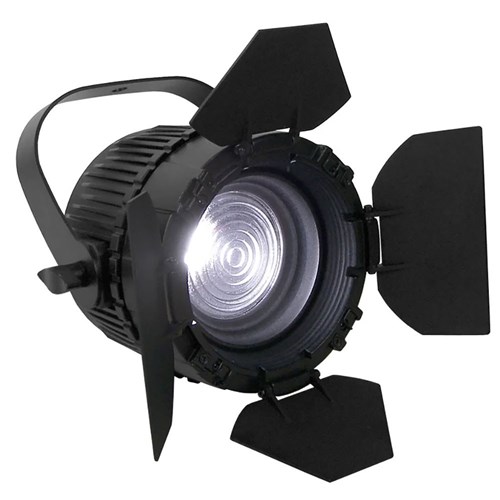

Variable White Fresnel with 2 x 48W Cool White / Warm White LEDs, 20-50° Manual Zoom, Aluminium Fanless Housing, Rotatable Barndoor Included, True1 in/out and 5 pin DMX In/Out.
ZEVF96VW
Photometrics
- Light Source: 1x 48W cool white 5,700 K and 1x 48W warm white 2,700 K COB LED
- CRI: 95
- Beam Angle: 20°~50°
- Field Angle: 50°~67°
- Output: 1420 lux @ 3 m @ 20°, 535 lux @ 3 m @ 50°
- Lens: 80 mm Fresnel
- PWM: 1,200 Hz
- LED Lifespan: 50,000 hours
Effects
- Dimming: 0~100%, 16-bit
- Strobe: 1~25 Hz
- Zoom: Manual, 20°~50°
- Barn Door: Included
- Gel Clip: Included

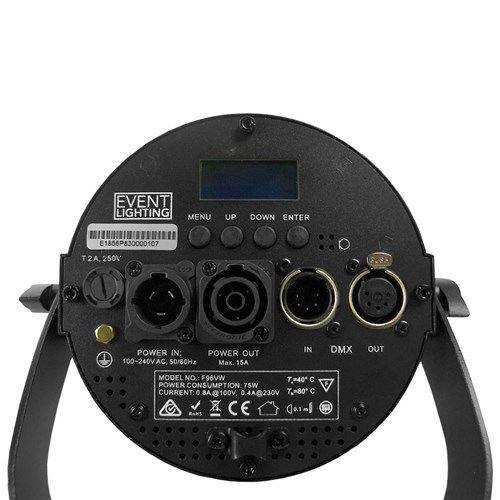

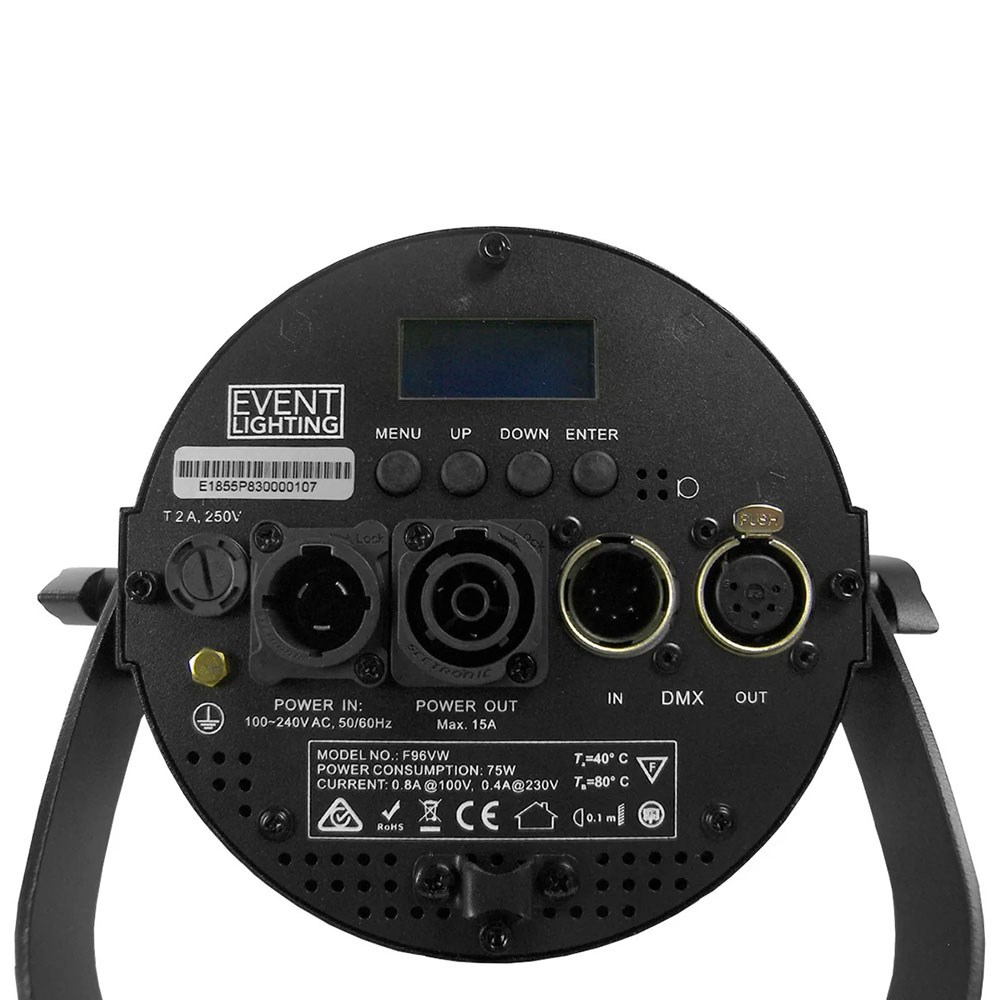

Power
- Power Supply: 100~240 V AC, 50/60 Hz, 75 W
- Power Connection: Neutrik® PowerCON in / out
Control
- Operational Modes: DMX, manual, master/slave
- Display: 4-button LCD control panel
- Control Protocol: DMX512
- DMX Channel Mode: 1 / 2 / 5
- Control Interface: 5-pin XLR
Housing
- Housing Materials: Die- cast Aluminum Housing
- Housing Finishing: Matte Black
- Cooling: Fanless Cooling with Temperature Protection
- Net Weight: 2.3 kg
- Dimension: 202 X 139 X 193mm
