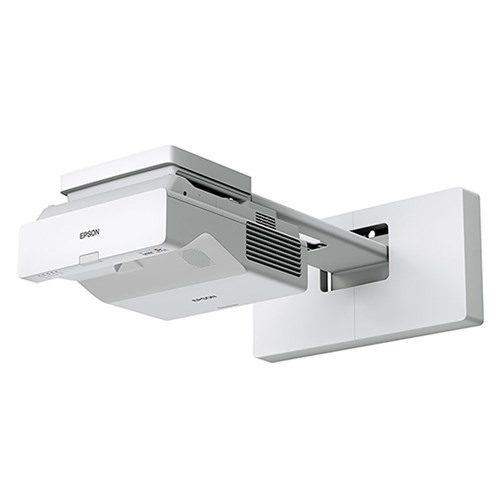

Epson UST FHD Projector 4100 Lumens

KEY FEATURES

• Up to 3x brighter colours and reliable performance1 – 3LCD, 3-chip technology. Look for both high colour brightness and high white brightness
• Lamp-free laser light source – provides up to 20,000 hours of virtually maintenance free operation, with the added benefits of higher image contrast and instant ON/OFF
• 1080p resolution – for Full HD presentations, videos, images, digital signage and more
• Amazing colour brightness – up to 4,100 lumens colour brightness and 4,100 lumens white brightness
• Miracast support – project your smartphone or tablet screens without a cable connection
• Large image size – displays large true-to-life images up to 150" in a convenient ultra short throw design
• Flexible display – 16:9 display with additional support for ultra wide 16:6 and 21:9 formats; ideal for large, multi-device, split screen images
• Touch-enabled interactivity – turn on the projector and start writing using your finger or the included pens (finger touch unit is optional)
• Captivating sound – enjoy a built-in stereo speaker up to 16 W for life-like sound
• Simple set-up – easily project wall-sized images, with built-in edge blending features for easy, scalable projection
• Up to 3-year projector warranty – enjoy peace of mind

EB-770Fi 1080p 3LCD interactive ultra short throw lamp-free laser display
The large, easy-to-read display for captivating interactive lessons

True-to-life images
With 3-chip 3LCD technology and 4,100 lumens of colour and white brightness1

Incredible image quality
Delivers Full HD 1080p resolution for amazing clarity and readability

No lamps to replace ever
A solid-state, 20,000-hour, virtually maintenance-free laser light source2

Interactive display up to 100"
Provides up to 75% more interactive space than a 75" interactive panel, for a low cost per square inch

Multi-user capability for easy collaboration
Dual-pen-enabled interactivity; optional slim-design touch module allows up to eight users to collaborate at once

TECHNOLOGY

• Projection System: Epson 3LCD, 3-chip technology
• LCD Panel: 0.62-inch (C2fine)
• Resolution: 1080p

OPTICAL

• Zoom: 1 – 1.35 (Digital)
• Screen Size:
  • • 60" to 150" [32.5 cm to 89.3 cm] @16:9
    • 57" to 142" [39.4 cm to 85.3 cm] @21:9
• Projection Distance: 77" screen at 43.3 cm
• Throw Ratio:
  • • 0.25 (Zoom:Wide)
    • 0.35 (Zoom:Tele)
• Projection Lens F Number: 1.6
• Projection Lens Focal Length: 3.7 mm
• Focus Method: Manual
• Offset: 5.2: -1


• Colour Light Output: 4,100 lumens
• White Light Output: 4,100 lumens
• Native Aspect Ratio: 16:9
• Contrast Ratio: Over 2,500,000:1
• Light Source: Laser diode
• Colour Reproduction: Up to 1.07 billion colours
• Colour Processing: 10 bit
• Keystone Correction: Vertical: -3 to +3 degrees
• Horizontal: -3 to +3 degrees
• Quick Corner: Yes (Auto & Manual)
• Auto Setup: Yes
• Split Screen: Yes
• Refresh Rate: 192 Hz / 240 Hz

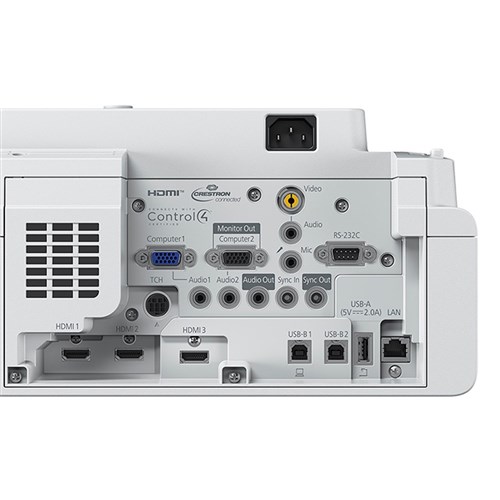

CONNECTIVITY

• Video I/O - Input:
  • •  2 x RGB D-sub 15-pin
    • 1x RCA Composite
• Video I/O - Output: 1 x RGB D-sub 15-pin (shared)
• Digital Input: 3 x HDMI
• Audio I/O - Input:
  • • 3 x Stereo mini
    • 1 x Mic-In Stereo Mini
• Audio I/O - Output: 1 x Stereo mini
• Control I/O:
  • • 1 x RS232C (D-sub 9-pin)
    • Interactive sync Stereo mini – 1 x In, 1 x Out
    • Touch Unit Control – Mini DIN 8-pin
• USB I/O:
  • • 2 x Type A (for PC free, firmware update, Copy OSD settings, 5V/2A power supply1)
    • 2 x Type B (Firmware update, Copy OSD Settings, USB display)
• Network I/O: 1 x RJ45, 1 x USB Type A for optional wireless LAN2
• Touch Interactive: Min DIN 8-pin
• Wireless Connectivity: Included
• Speaker Output: 1 x 16 W Stereo

ADVANCED FEATURES

• Miracast: Yes
• Super Resolution: Yes
• Detail Enhancement: Yes
• Scene Adaptive Gamma Correction: Yes
• Edge Blending: Yes
• Partner Standards: Crestron Integrated Partner, Crestron Connected, Extron IP Link, AMX Device Discovery, Control4 Simple Device Discovery Protocol
• Wireless LAN Security: WPA2/WPA3-PSK, WPA2/WPA3-EAP
• Instant Off: Yes
• Direct Power On: Yes
• Auto Power On: Yes
• PC Interactive Tool:
  • • Multiple pen support: Yes (up to 2) with Easy Interactive Tools
    • Finger touch support: Optional (ELPFT01)
• PC-free Annotation Tool:
  • • Multiple pen support: Yes (up to 2)
    • Finger touch support: Optional (ELPFT01)
    • Whiteboard function
    • Screen Sharing
• Security:
  • • Padlock and security cable hole
    • Kensington® lock provision
    • Wireless LAN Unit Lock
    • Password protection
• Colour Modes:
  • • Dynamic
    • Presentation
    • Cinema
    • sRGB
    • BlackBoard
    • DICOM SIM
    • Multi-projection
• Wall Mount: Optional (ELPMB62)
• Finger Interactive Unit:
  • • Optional (ELPFT01)
    • Dimension: 422 x 40 x 65 mm (WxHxD)
    • Weight: 600 g
    • Technology: Infrared Laser (Class 1)
    • Adjustment: Auto
    • Control I/O: 1 x Mini DIN 8-pin
    • Security: Kensington® – lock provision, Padlock and security cable hole

EPSON SOFTWARE

• Epson Projection Management Software: Yes
  • • Ver 5.43 (Windows)
• Epson iProjection Software: Yes
  • • Ver 3.32 (Windows)
    • Ver 3.31 (mac OS)
    • Ver 3.3.1 (iOS/Android)
    • Ver 2.1.0 (Chrome)
• Easy Interactive Tools:
  • • Ver 5.10 (Windows)
    • Ver 5.04 (Mac OS)
• Firmware Update:
  • • Network via LAN cable,
    • Network via Wireless LAN,
    • USB A via USB thumb drive,
    • USB B via USB cable
• Copy OSD settings:
  • • Network via LAN cable,
    • USB A via USB thumb drive,
    • USB B via USB cable

GENERAL

• Dimensions D x W x H (including feet): 395 x 357 x 165 mm
• Weight: 6 kg
• Projector Warranty:  3 Years
• Power Consumption: Projector on: 263 W
• Power Consumption: Standby: 2 W
• Noise Level (Normal / Eco): 37 / 27 dB

• Main Unit: EB-770Fi Projector
• Power Cable: 1.8 m
• USB Cable Cable: 5 m
• Remote Control: Yes
• Battery for Remote Control: 2 x AA
• Projector Feet: Yes
• Easy Interactive Pen: 2 Pens
• Battery for Easy Interactive Pen: 2 x AA
• Pen Stand: Yes
• Pen Tip (Soft): x 4
• Pen Tip (Hard): x 2
• Corner markers for auto setup: Yes
• Magnet for corner markers: Yes
• Quick Start Guide: Yes
