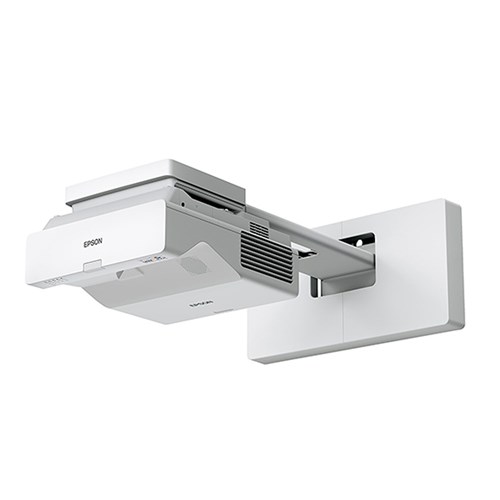

Epson UST WXGA Projector 4100 Lumens

Product Code: EB-760WI

Share this product
Unit Description
Each
Usually Ships 5-7 Days
Login for School Account Pricing

$3793.90 inc GST
Increase value Decrease value
Quantity in cart:
Qty Each Save %
  • Description
  • Specifications
  • Contents
  • Contact Us

KEY FEATURES

  • Up to 3x brighter colours and reliable performance1 – 3LCD, 3-chip technology. Look for both high colour brightness and high white brightness.
  • Lamp-free laser light source – provides up to 20,000 hours of virtually maintenance free operation, with the added benefits of higher image contrast and instant ON/OFF.
  • 16:10 WXGA resolution – for true-to-life images; supports 4:3 and 16:9 aspect ratios for presentations, videos, images, digital signage and more.
  • Amazing colour brightness – up to 4,100 lumens colour brightness and 4,100 lumens white brightness.
  • Miracast support – project your smartphone or tablet screens without a cable connection.
  • Large image size – displays large true-to-life images up to 150" in a convenient ultra short throw design.
  • Touch-enabled interactivity – turn on the projector and start writing using your finger or the included pens (finger touch unit is optional).
  • Captivating sound – enjoy a built-in stereo speaker up to 16 W for life-like sound.
  • Up to 3-year projector warranty – enjoy peace of mind.

EB-760Wi WXGA 3LCD interactive lamp-free laser display
Lamp-free interactive display projects easy-to-read images for collaborative classrooms

True-to-life images
With 3-chip 3LCD technology and 4,100 lumens of colour and white brightness1

No lamps to replace ever
A solid-state, 20,000-hour, virtually maintenance-free laser light source2

Large, easy-to-read images
16:10 WXGA resolution for true-to-life images. Also supports 16:9 and 4:3 aspect ratios

Interactive display up to 100"
Provides up to 85 percent more interactive space than a 75" interactive panel, for a low cost per square inch

Multi-user capability for easy collaboration
Dual-pen-enabled interactivity; optional slim-design touch module allows up to eight users to collaborate at once


ZKOEB760WI

TECHNOLOGY

  • Projection System: Epson 3LCD, 3-chip technology
  • LCD Panel: 0.59-inch (C2fine)
  • Resolution: WXGA

OPTICAL

  • Zoom: 1 – 1.35 (Digital)
  • Screen Size: 60" to 150" [33.7 cm to 92.8 cm] @ 16:10
  • Projection Distance: 74.3" screen at 43.3 cm
  • Throw Ratio:
      • 0.27 (Zoom:Wide)
      • 0.37 (Zoom:Tele)
  • Projection Lens F Number: 1.6
  • Projection Lens Focal Length: 3.7 mm
  • Focus Method: Manual
  • Offset: 5.8 : -1


  • Colour Light Output: 4,100 lumens
  • White Light Output: 4,100 lumens
  • Native Aspect Ratio: 16:10
  • Contrast Ratio: Over 2,500,000:1
  • Light Source: Laser diode
  • Colour Reproduction: Up to 1.07 billion colours
  • Colour Processing: 10 bit
  • Keystone Correction: Vertical: -3 to +3 degrees
  • Horizontal: -3 to +3 degrees
  • Quick Corner: Yes (Auto & Manual)
  • Auto Setup: Yes
  • Split Screen: Yes
  • Refresh Rate: 100 Hz / 120 Hz

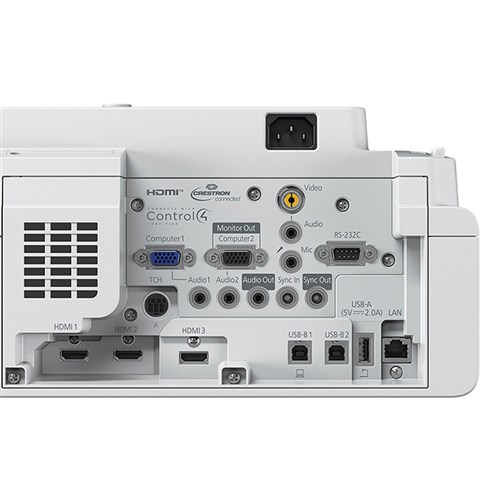

CONNECTIVITY

  • Video I/O - Input:
      • 2 x RGB D-sub 15-pin
      • 1x RCA Composite
  • Video I/O - Output: 1 x RGB D-sub 15-pin (shared)
  • Digital Input: 3 x HDMI
  • Audio I/O - Input:
      • 3 x Stereo mini
      • 1 x Mic-In Stereo Mini
  • Audio I/O - Output: 1 x Stereo mini
  • Control I/O:
      • 1 x RS232C (D-sub 9-pin)
      • Interactive sync Stereo mini – 1 x In, 1 x Out
      • Touch Unit Control – Mini DIN 8-pin
  • USB I/O:
      • 2 x Type A (for PC free, firmware update, Copy OSD settings, 5V/2A power supply1)
      • 2 x Type B (Firmware update, Copy OSD Settings, USB display)
  • Network I/O: 1 x RJ45, 1 x USB Type A for optional wireless LAN2
  • Touch Interactive: Min DIN 8-pin
  • Wireless Connectivity: Included
  • Speaker Output: 1 x 16 W Stereo

ADVANCED FEATURES

  • Miracast: Yes
  • Super Resolution: Yes
  • Detail Enhancement: Yes
  • Scene Adaptive Gamma Correction: Yes
  • Partner Standards: Crestron Integrated Partner, Crestron Connected, Extron IP Link, AMX Device Discovery, Control4 Simple Device Discovery Protocol
  • Wireless LAN Security: WPA2/WPA3-PSK, WPA2/WPA3-EAP
  • Instant Off: Yes
  • Direct Power On: Yes
  • Auto Power On: Yes
  • PC Interactive Tool:
      • Multiple pen support: Yes (up to 2) with Easy Interactive Tools
      • Finger touch support: Optional (ELPFT01)
  • PC-free Annotation Tool:
      • Multiple pen support: Yes (up to 2)
      • Finger touch support: Optional (ELPFT01)
      • Whiteboard function
      • Screen Sharing
  • Security:
      • Padlock and security cable hole
      • Kensington® lock provision
      • Wireless LAN Unit Lock
      • Password protection
  • Colour Modes:
      • Dynamic
      • Presentation
      • Cinema
      • sRGB
      • BlackBoard
  • Wall Mount: Optional (ELPMB62)
  • Finger Interactive Unit:
      • Optional (ELPFT01)
      • Dimension: 422 x 40 x 65 mm (WxHxD)
      • Weight: 600 g
      • Technology: Infrared Laser (Class 1)
      • Adjustment: Auto
      • Control I/O: 1 x Mini DIN 8-pin
      • Security: Kensington® – lock provision, Padlock and security cable hole

EPSON SOFTWARE

  • Epson Projection Management Software: Yes
      • Ver 5.43 (Windows)
  • Epson iProjection Software: Yes
      • Ver 3.32 (Windows)
      • Ver 3.31 (mac OS)
      • Ver 3.3.1 (iOS/Android)
      • Ver 2.1.0 (Chrome)
  • Easy Interactive Tools:
      • Ver 5.10 (Windows)
      • Ver 5.04 (Mac OS)
  • Firmware Update:
      • Network via LAN cable,
      • Network via Wireless LAN,
      • USB A via USB thumb drive,
      • USB B via USB cable
  • Copy OSD settings:
      • Network via LAN cable,
      • USB A via USB thumb drive,
      • USB B via USB cable

GENERAL

  • Dimensions D x W x H (including feet): 395 x 357 x 165 mm
  • Weight: 6 kg
  • Projector Warranty: 3 Years
  • Power Consumption: Projector on: 263 W
  • Power Consumption: Standby: 2 W
  • Noise Level (Normal / Eco): 37 / 27 dB
  • Main Unit: EB-760Wi Projector
  • Power Cable: 1.8 m
  • USB Cable Cable: 5 m
  • Remote Control: Yes
  • Battery for Remote Control:  2 x AA
  • Projector Feet: Yes
  • Easy Interactive Pen: 2 Pens
  • Battery for Easy Interactive Pen: 2 x AA
  • Pen Stand: Yes
  • Pen Tip (Soft): x 4
  • Pen Tip (Hard): x 2
  • Corner markers for auto setup: Yes
  • Magnet for corner markers: Yes
  • Quick Start Guide: Yes
