Installation Lighting Pack 4

This kit is designed ready for the user to install.

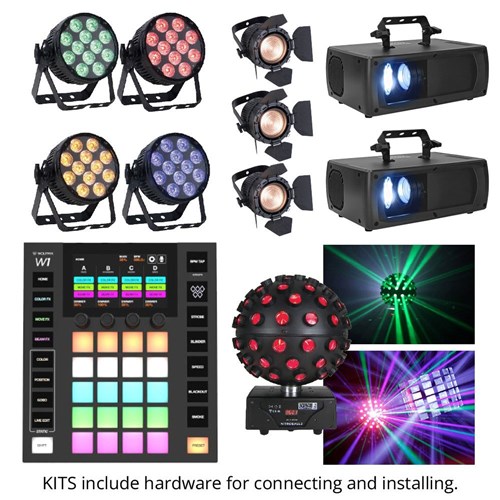

Kit includes 4 x professional LED Flat Par with 12 x 12W RGBWAU LEDs (PAR12H) and 3 x fanless variable white fresnel lights (F96VW) to operate through an advanced control system. Also included are 2 x special effect lights with lasers and LED mirror ball effect light for sound activation. Clamps, patch power and data leads are included, main input lead required separately. Installation can be arranged at an extra cost.

Specifications for Lite Series LED Flat Par with 12 x 12W RGBWAU LEDs:

Photometric

• Light Source: 12x 12W RGBWAU 6-in-1 LEDs.

• Beam  Angle: 40°.

• PWM: 2,000 Hz.

• LED Lifespan: 50,000hours.

Effects

• Dimming: 0~100%.

• Strobe: 1 - 20 Hz.

Power

• Input Voltage: 100~240V AC, 50/60Hz.

• Power Consumption: 60W.

• Connection: IEC in/out.

• IEC piggy back cable included.

Control

• Operation Modes: DMX, manual, auto, sound active, IR remote, master/slave.

• DMX channels: 6/11.

Housing

• Materials: Die-cast aluminium, matte black finish.

• Cooling: Fanless Cooling.

• Net weight: 1.85kg.

Specifications for the Spherical rotating effect light 5 x 15W RGBWAUV LED:

• LEDs: 5 x 15W 6-in-1 RGBWAUV.

• Lenses: 98.

• Beam Angle: 1 degree.

• Control: DMX, Sound Active, Master/Slave, Stand Alone.

• DMX Channels: 13.

• Functions: Continuous rotation, strobing, variable rotation, individual LED colour control.

• Connections: IEC in/out for power, 3 pin XLR for DMX.

• Dimensions: 355x355x485mm.

• Weight: 6.5kg.

Specifications for the 3-in-1 Lighting:Derby, Strobe, flood light and RGB laser:

• 3-in-1 Lighting Effect.

• IR Remote control included.

• Derby: 2 x 10W RGBW 4-in-1 LEDs.

• Strobe/Flood: 105 x 0.2w RGB 3-in-1 LEDs.

• Laser: Red 100mW/650nm, Green 30mW/532nm, Blue 150mW/450nm.

• Control: Sound, Auto, DMX, Master/Slave, IR Remote.

• Weight: 5.2kg N.W 6.5kg G.W.

• Dimensions: 510x290x295mm.

Specifications for the Wolfmix W1 MK2 Standalone performance DMX light control:

Display

• 4.3” Color TFT with tinted glass

• Capacitive touch

Encoders

• Full body alloy

• Incremental push with acceleration

Button pads

• 37 Silicone buttons with matt oil finishing

• LED color backlit

Processing

• 220Mhz CPU with ARM core

• 8MB RAM

• 16MB Flash

Audio

• Omnidirectional electret mic

• 3.5mm Jack Line-In

• Analog adaptive peak detector

DMX

• 2x 3pin DMX OUT XLR connectors

• 1x 5pin DMX OUT XLR connector

• 1x 5pin DMX IN/OUT XLR connector with WLINK

USB

• USB-A connector (MIDI / MSD)

• USB-B connector- 900ma required (USB3 rating)

• High-speed USB communication

Housing

• ABS Plastic

• Powder-coated steel base plate with 100mm VESA (M4 6mm max)

• Powder-coated steel reinforced back plate

Size & weight

• 195 x 220 x 62 mm / 7.68 x 8.66 x 2.44 in

• 1070g / 2.36lb

• 4  x Lite Series LED Flat Par with 12 x 12W RGBWAU LEDs, Aluminium Fanless Housing, IEC in/out, 3 pin DMX in/out, 40° Beam Angle and IR Remote Included (PAR12X12L).

• 3  x Variable White Fresnel with 2 x 48W Cool White / Warm White LEDs, 20-50° Manual Zoom, Aluminium Fanless Housing, Rotatable Barndoor Included, True1 in/out and 5 pin DMX In/Out (F96VW).

• 1  x Spherical rotating effect light, 5 x 15W RGBWAUV LED (NITROBALL2).

• 2  x  3-in-1 Lighting Effect: Derby, LED Strobe and flood light and RGB Laser (DERBY3).

• 1  x "Wolfmix W1 MK2 Standalone performance DMX lighting controller - featuring 4.3"" touch screen, 37 x silicon pads, 4 x push encoders, 2 x 3 pin/2 x 5 pin DMX outputs, 2 universes included (expandable to 4), 3.5mm audio jack socket, USB-A connection, new encoder caps, 3D visualiser sold separately (software upgrade)" (WOLFMIXW1MK2).

• 6  x  3m XLR 5 pin male to female- Yellow Ring (XLR5M5F3).

• 5  x  3m Male TrueOne to Female TrueOne lead - 1.5mm2 (TONE3).

• 10  x  Aluminium Pipe Clamp, Suits 48 - 51mm tube, 30mm width, WLL 75Kg - BLACK (CLAMPP50L).

• 10  x  Safety Wire, 3mm steel at 800mm long, 40Kg maximum load - 230Kg dead weight breaking point. Black PVC coated (SW3X800PB).
