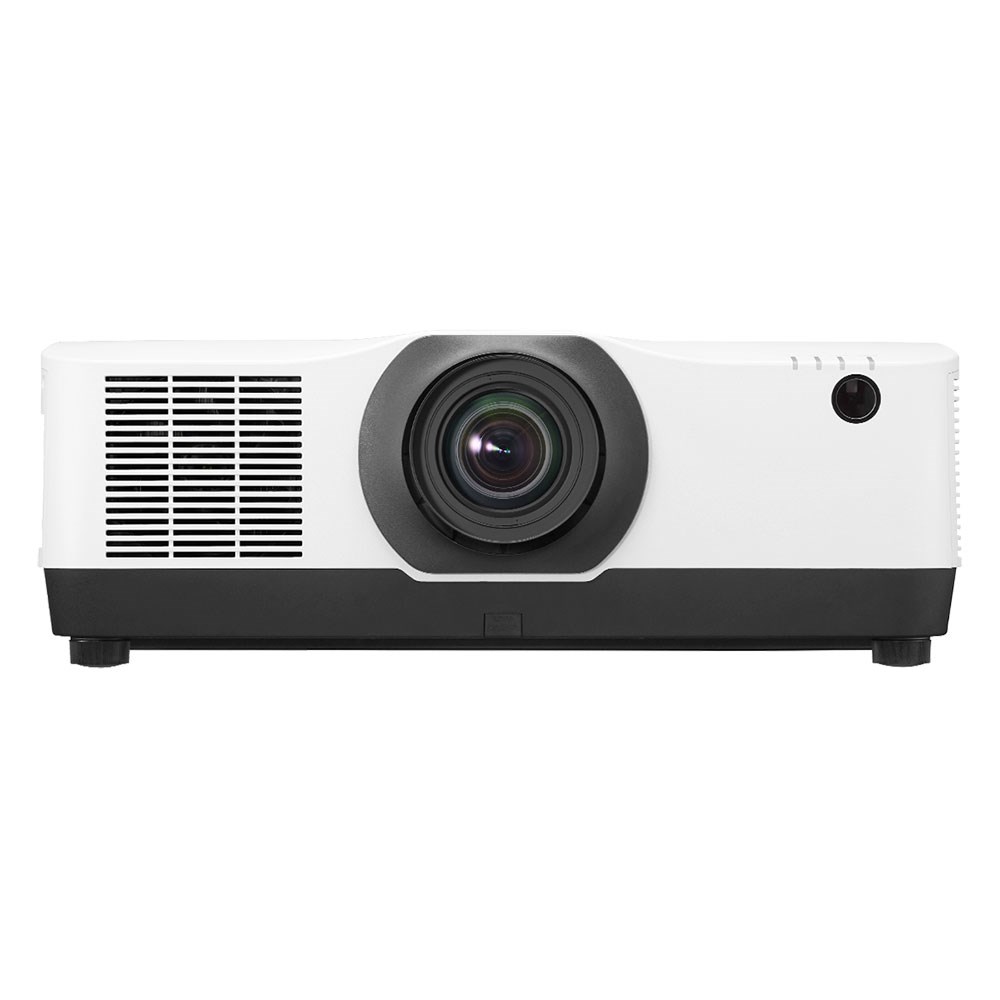

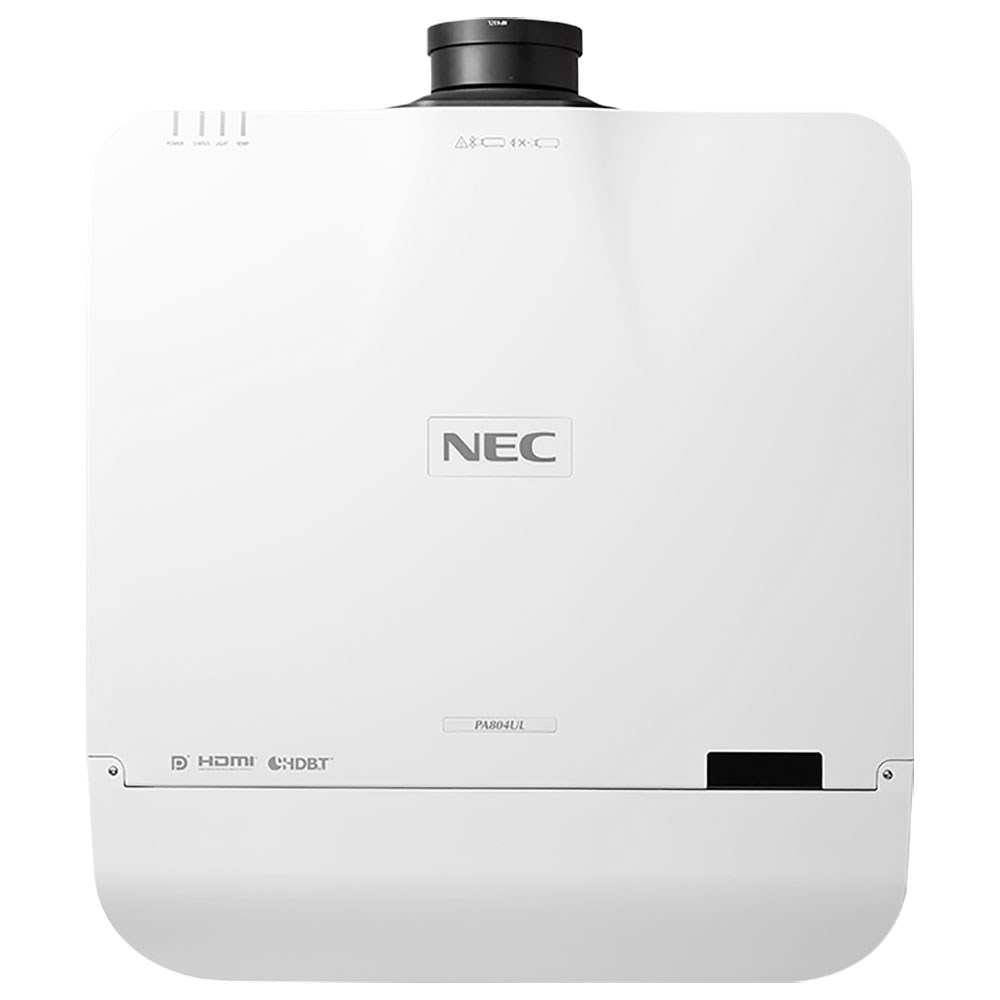

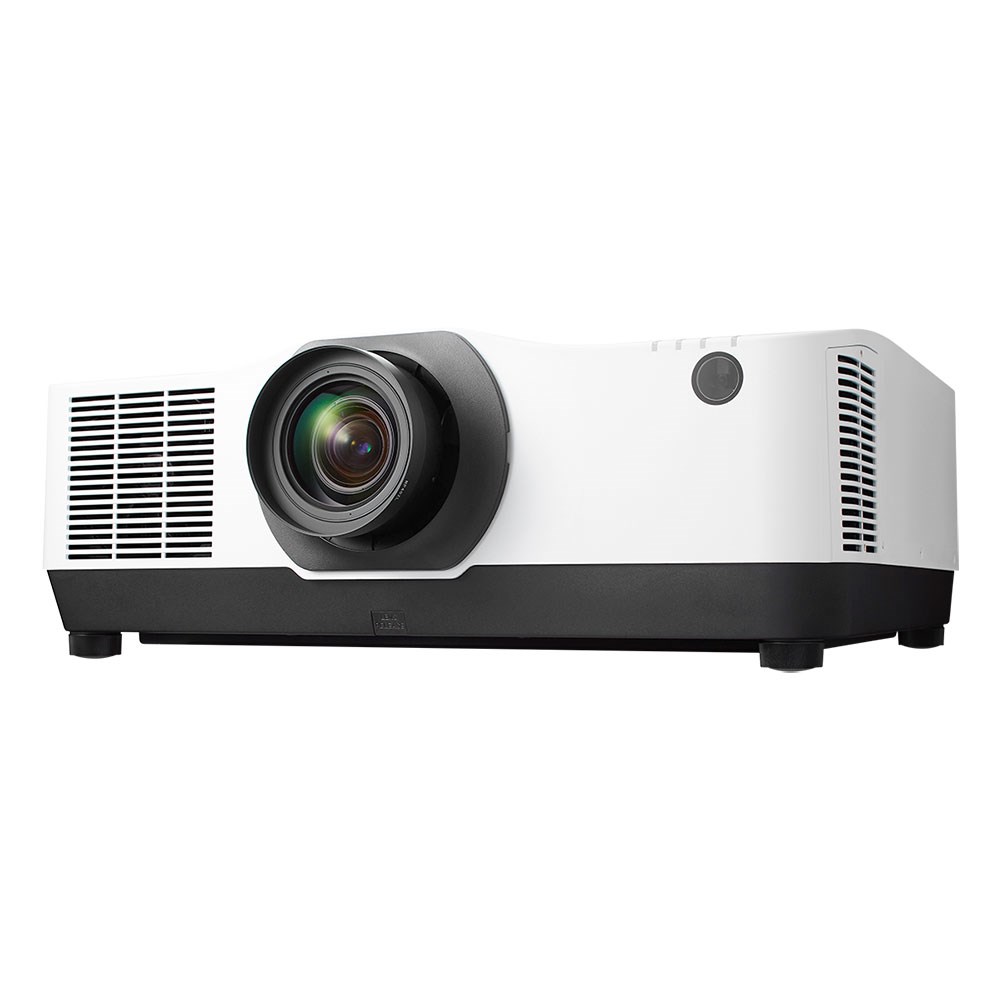

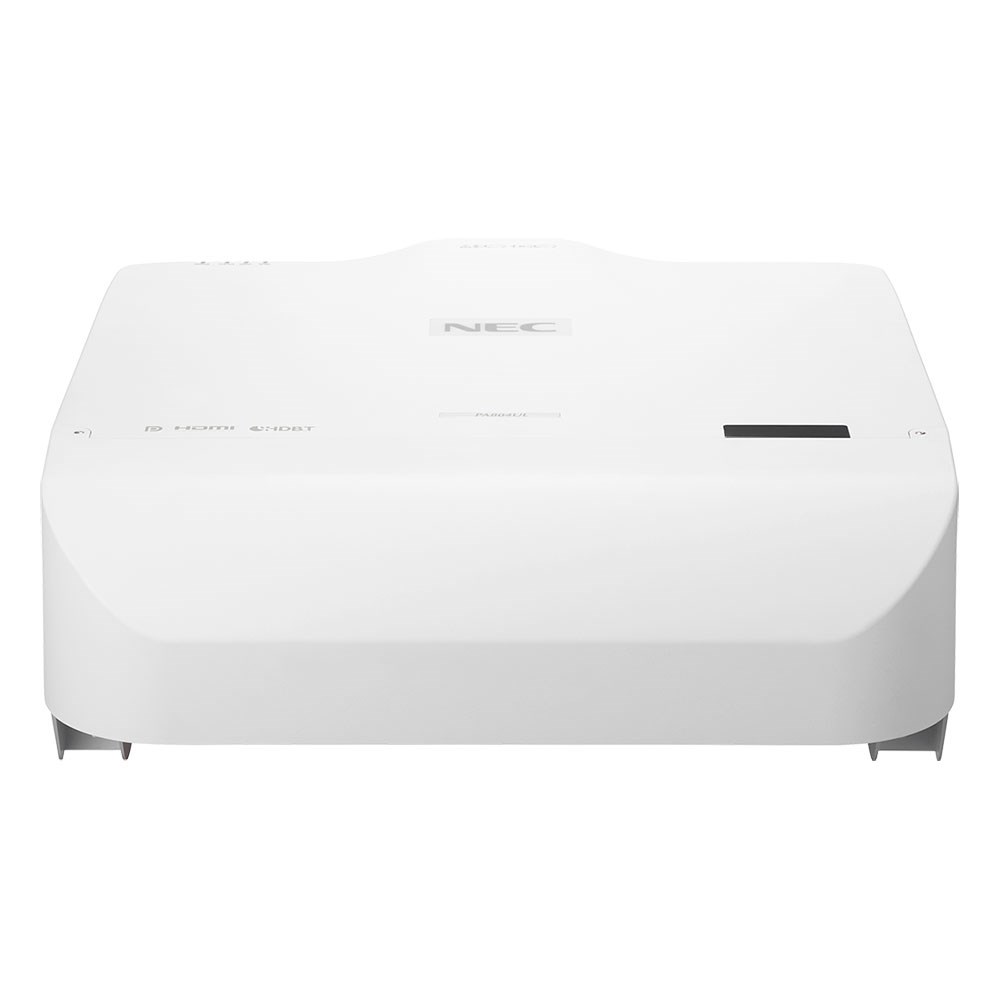

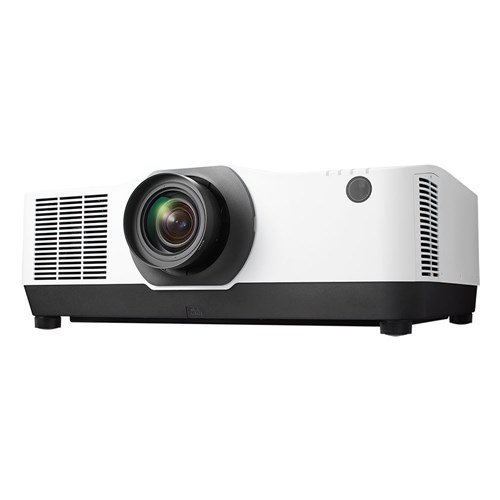

NEC NP-PA1004UL 10,000-Lumen WUXGA 3LCD Laser Projector

Product Code: NPPA1004UL

Share this product
Unit Description
Each
Usually Ships 5-7 Days
Login for School Account Pricing

Call for a price inc GST
Quantity in cart:
Qty Each Save %
  • Description
  • Specifications
  • Contents
  • Downloads
  • Contact Us

A NEW CLASS OF SILENT PROJECTION!

Now even larger spaces can benefit from NEC’s innovation in super-silent technology with the 10,000 lumens PA1004UL laser projector, ensuring all attention is focused on the stunning image delivery.

Featuring unprecedented White Point performance, factory pre-calibrated for the perfect white, 12-bit colour signal processing and wide colour space, the audience will experience extraordinarily vivid colour saturation and contrast levels.

With the newly designed sealed optical engine there is no possibility of dust contaminating the LCD panels for long-term picture stability and brilliant colour brightness. What’s more, with our unique filterless LCD projector design and no lamp replacement, service costs are dramatically reduced for a low cost of ownership and up to 20,000 hours life-time.

Fully compatible with previous generation lamp-based PA Series mechanical lenses, NEC customers can easily make the transition to benefit from the latest laser technology. The PA1004UL is a professional installation projector featuring advanced installation capabilities as demanded by higher education, leisure and museum applications.

Key Benefits:

  • No lamp replacement: up to 20,000 hours maintenance free operation possible due to Laser Light Source.
  • No filter service required: a completely sealed optical laser LCD engine allows a filter-free design. Brilliant colour brightness is maintained and servicing costs need no longer feature in your budget.
  • Super Silent operation: patented sealed light engine incorporating innovative fan design not only protects against dust ingress but dramatically reduces noise.
  • Impress with vivid colour & contrast: brilliant white and wide colour space with high dynamic contrast supporting HDR10 standard via HDMI interface.
  • Incredible visualisation capabilities: impressive free tilt and portrait installation capability, unique geometric adjustment, picture in picture, tiling, 3D support and camera based blending/stacking up to 4K.

ZNENPPA1004UL


  • Projection Technology: 3LCD Technology
  • Native Resolution: 1920x1200
  • Aspect Ratio: 16:10
  • Contrast Ratio (typ.): 3,000,000:1
  • Brightness: 9000 lumens
  • Brightness (Boost Mode): 10000 ANSI Lumen
  • Light Source: Laser
  • Light Source Life: 20000 hrs
  • Lens: 4 motorised lens options; 5 manual lens options
  • Lense Adjustment: Motorised and manual (depending on lens)
  • Lens shift: H:±20, V:+10,-50
  • Keystone correction: +/- 40° manual horizontal / +/- 40° manual vertical
  • Projection Factor: depending on lens selection (std. option NP41ZL at 1.3-3.02:1)
  • Projection Distance: 0.7 – 50.9 m
  • Screen Size (diagonal): Maximum: 1,270mm / 500"; Minimum: 101.6mm / 40"
  • Zoom: Motorised and manual (depending on lens)
  • Focus Adjustment: Motorised and manual (depending on lens)
  • Supported Resolution: 1920x1080, 1920x1200, 4096x2160, 1280x720, 2048x1080, 720×576, 2560x1600, 720x480
  • Frequency: Horizontal: analog: 15/24-100 kHz, digital: 15/24-153 kHz; Vertical: analog: 48-120 Hz, digital: 48-120 Hz

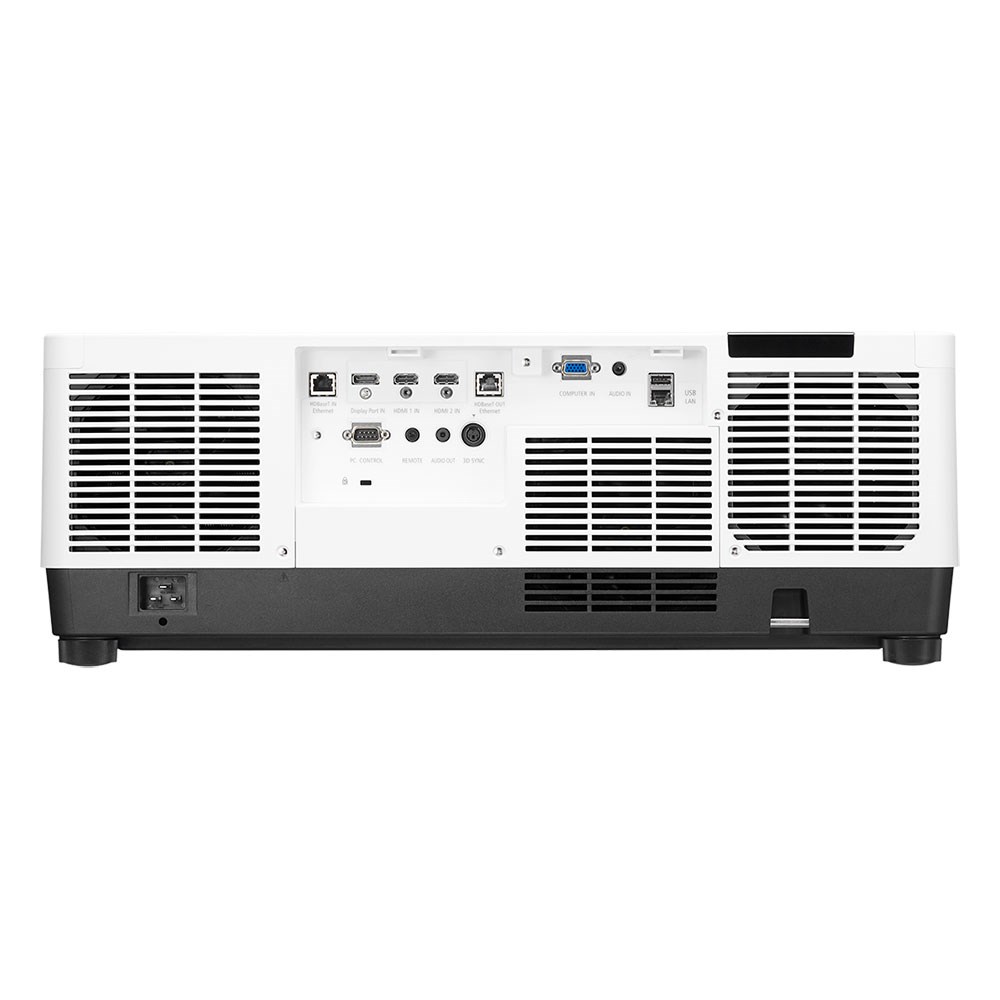

CONNECTIVITY

  • RGB (analog) Input: 1 x Mini D-sub 15-pin, compatible to component (YPbPr)
  • Digital Input: 1 x DisplayPort; 1 x HDBaseT; 2 x HDMI™ supporting HDCP 2.2
  • Digital Output: 1 x HDBaseT supporting HDCP 2.2
  • Audio Input: 1 x DisplayPort Audio support; 1 x HDBaseT audio support; 2 x 3.5 mm Stereo Mini Jack for Computer analog; 2 x HDMI audio support
  • Audio Output: 1 x 3.5 mm Stereo Mini Jack (variable)
  • Control Input: 1 x 3.5 mm Stereo Mini Jack (Wired Remote); 1 x D-Sub 9 pin (RS-232), Ethernet
  • LAN: 1 x RJ45
  • USB: 1 x Type A (USB 2.0 high speed)
  • 3D Sync Output: 1 x Mini DIN 3pin

REMOTE CONTROL

  • Remote Control: Audio Control; Digital Zoom; Geometric Correction; ID Select; ID set; Power (On-OFF); Select (up, down, left, right); Shutter function; Source Select; Test Picture; Zoom/Focus and Lens Shift Control

ELECTRICAL

  • Power Supply: 100-240 V AC, 50/60 Hz
  • Power Consumption: 700-800W, 0.8 (Network Stand-by) / 0.28 (Stand-by)

MECHANICAL

  • Dimensions: 599W x 208H x 490D (mm)
  • Weight: 20-25 kg
  • Fan Noise [dB (A)]: 32 / 35 (Eco / Normal)
  • Colour Versions: White

ENVIRONMENTAL CONDITIONS

  • Operating Temperature: +0 to +40 °C
  • Operating Humidity: 20 to 80%
  • Storage Temperature: -10 to 50°C
  • Storage Humidity: 20 to 80%

ERGONOMICS

  • Safety and Ergonomics: CE, EAC, ErP, RoHS, TUEV Type Approved

ADDITIONAL FEATURES

  • Special Characteristics: 3D ready; 4K/60Hz interfaces; Active 3D; AMX Beacon; Built-in Display/Multiscreen Splitter; Cinema Quality Picture (CQP) Processing for best image quality; Crestron RoomView; DICOM simulation; Digital 3D Reform™; Direct Power-Off Function; Edge Blending Function; Free Tilt; Geometric Correction; HDBaseT; HDBaseT-out signal connection; HDR10 Support; High Altitude Mode; Hollywood Quality Video Processing for best image quality; HTTP Browser Control; Keystone Correction (H=±40°, V=±40°); LAN control; Lens Memory; Lens Shift (vertical +0.5 max/-0.1 max, horizontal ± 0.3 max.); Light Source Adjustment; Manual Wall Color Correction; Multi-Screen compensation mode; NaViSet Administrator 2; Optional User Logo; OSD with 27 languages; Password Security System; PIP/Side by Side, HDMI - Input; PJ LINK; Portrait Setting; Rec2020 to Rec709 colour conversion; RS-232 Control; Seamless Switching; Stacking Function; Test Pattern; Timer-Function; UHD player support; Up to 20,000 hrs Light Source Life; Virtual Remote for direct PC control

GREEN FEATURES

  • Energy Efficiency: ECO scheduler, Intelligent Power Management, Less than 0.3W Stand-By power, Longer Light Source Life, Software scheduling, Timer-Function
  • Ecological Materials: Downloadable manuals, 100% recyclable packaging
  • Ecological Standards: ErP compliant

WARRANTY

  • Projector Warranty: 5 years Warranty
  • Light Source Warranty: 5 years or 10000h (whatever comes first)

SHIPPING CONTENT

  • Shipping Content: Power Cable, Projector, Quick Setup Guide, IR Remote Control, Users Manual on CD-ROM
  • Power Cable
  • Projector
  • Quick Setup Guide
  • IR Remote Control
  • Users Manual on CD-ROM
Captcha Image
Signature
Product Specifications
Product Type Projector
Brand NEC
