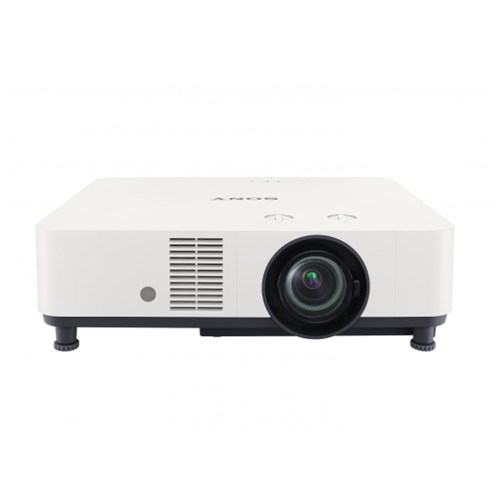

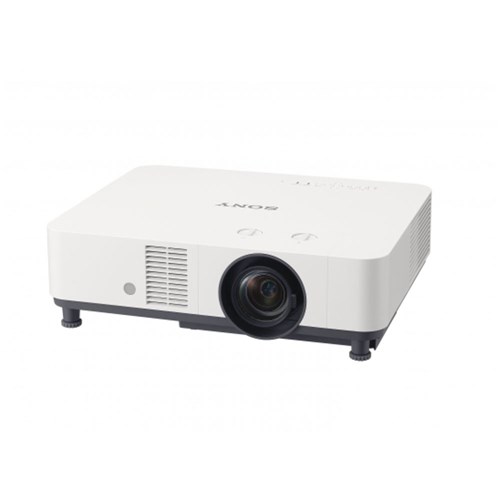

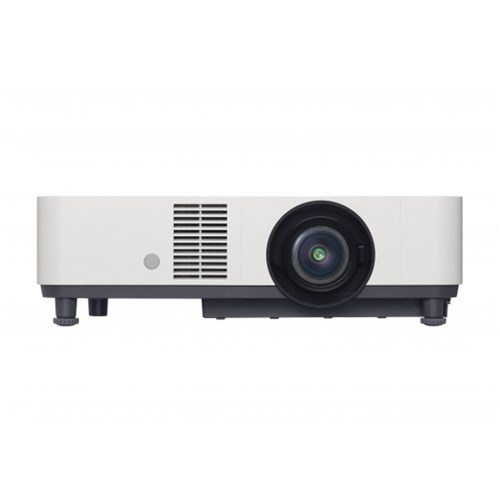

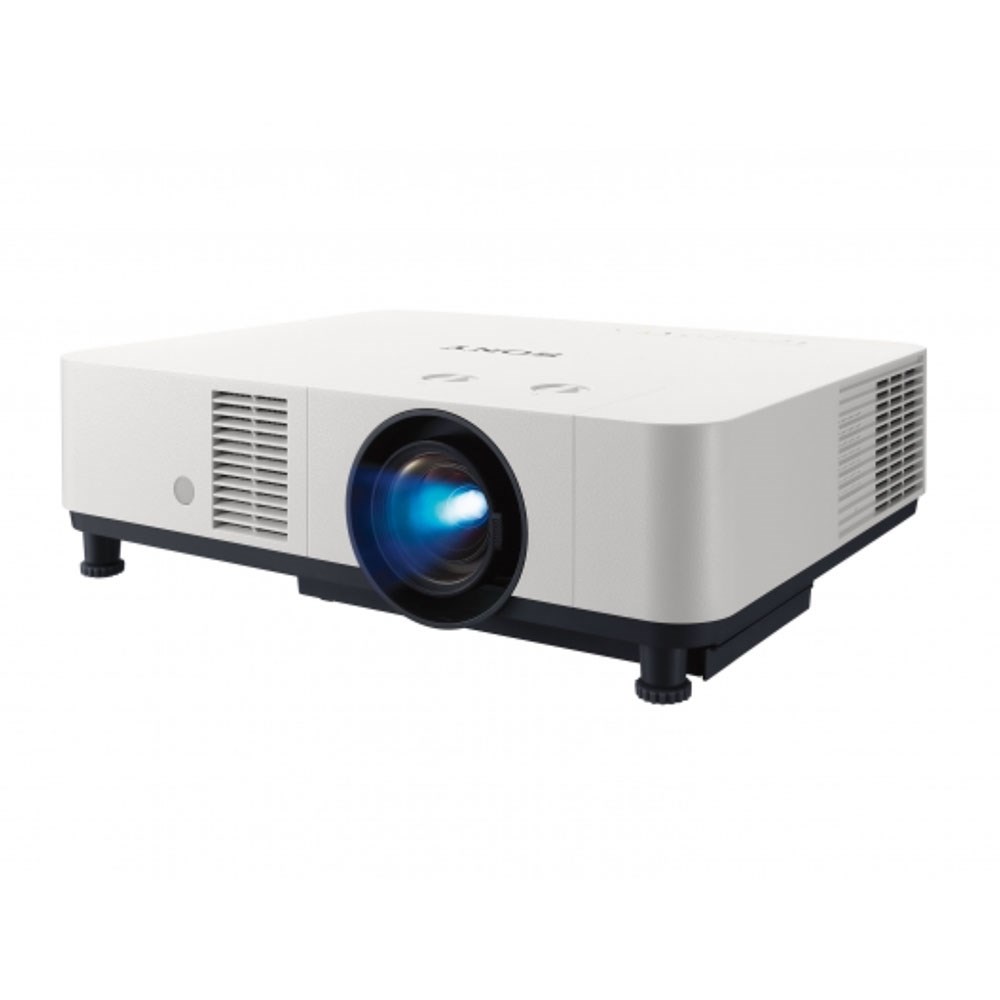

Impressively small, light 6,400/5,300 lumen* laser projectors
Beautifully slim and light with the smallest body in its class, the VPL-PHZ61/51 laser projector combines outstanding picture performance with up to 7,000lm center brightness and impressive reliability. A discreet blend-in design, minimal maintenance needs and flexible installation options make it the natural partner for today’s integrated AV environments.

*VPL-PHZ61 6,400 lm (7,000 lm center) / VPL-PHZ51 5,300 lm (5,800 lm center).

Bold, rich color, even in brightly lit rooms
Even powerful projectors can suffer from washed-out image colors in strongly lit rooms. Exclusive to Sony, Bright View delivers high-impact imagery without sacrificing color. Newly improved Reality Creation ensures images, diagrams, and text look clear and sharp, even in bright conditions. Intelligent Settings with Ambiance matches projected images with your environment for an enhanced viewing experience. There’s even an ambient light sensor to measure room brightness.

Clearer images and text

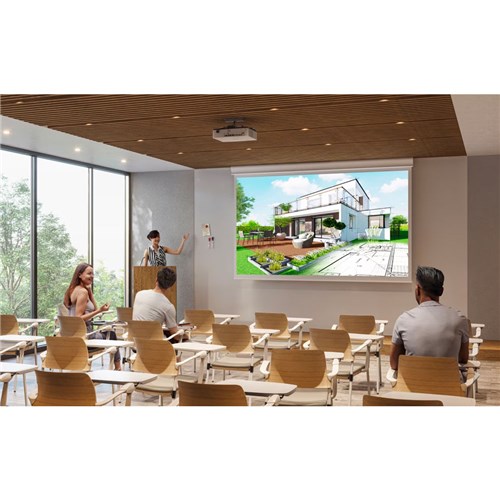

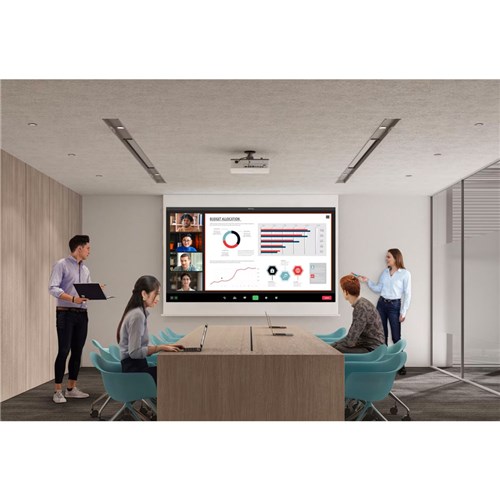

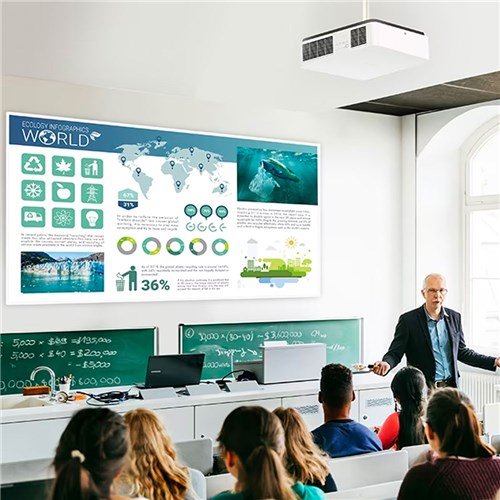

Reality Creation uses powerful algorithms that boost image resolution closer to 4K clarity. Reality Text improves visibility of characters: great for conference rooms, university seminar rooms and large classrooms.

Bright, beautiful colors
Bright View is Sony’s unique processing technology that brightens images while maintaining rich color – even in brightly lit business and educational environments.

Enhanced viewing experience
Intelligent Settings with Ambiance uses a built-in light sensor to measure room brightness, automatically adjusting Bright View mode, color gain, and Reality Creation to suit your presentation environment.

Enjoy optimum pictures while saving energy
The VPL-PHZ61/51 makes sound business sense, helping you reduce running costs in corporate and educational environments. A new Auto Light Output feature works in conjunction with Ambiance, optimizing image quality and maintaining high visibility while reducing power consumption.

4K 60P input support

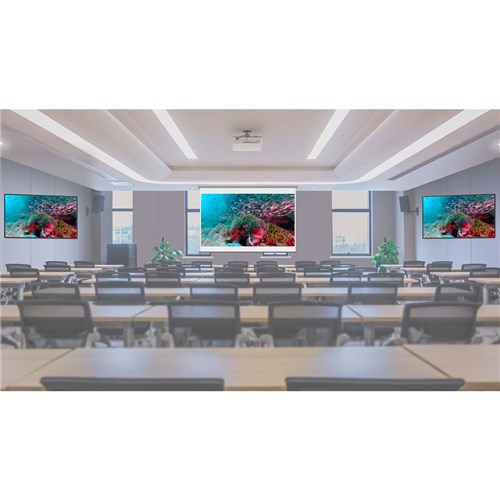

Support for 4K 60P input signals makes life simpler when you’re using the VPL-PHZ61/51 in multi-screen set-ups with flat panel sub-screens. Just split the same 4K signal to drive all your displays, with no conversion needed. There’s also a high-performance image scaler that effortlessly converts 4K input signals to WUXGA resolution while achieving close to 4K image quality. Now optimized for 4K60P signals, Reality Creation is Sony’s unique picture enhancement feature that gives projected images even greater crispness and depth. There’s also support for devices with content protection such as 4K UHD players.

Smart, installation-friendly design

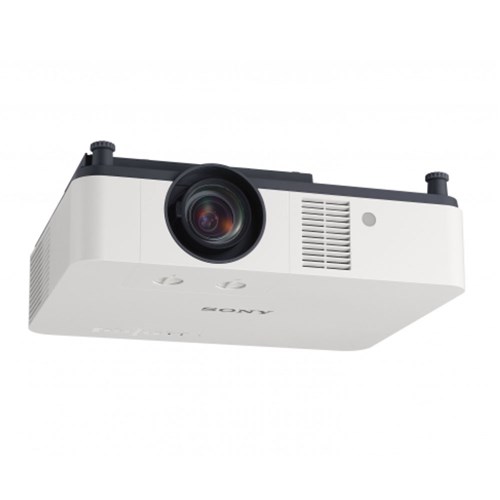

Enjoy flexible installation options with a generous +55% vertical lens shift range, making it easy to achieve perfectly proportioned pictures without long pole mounts or keystone correction when the projector's ceiling mounted. We've also widened the throw ratio range, simplifying replacement of a previously installed projector without the hassle of re-positioning an existing ceiling mount.

Brighter for longer with less maintenance
There’s plenty of innovation inside the VPL-PHZ61/51 to keep pictures looking clear and bright over the projector’s operational lifetime with minimal maintenance – in any environment.

Designed with intelligence
Intelligent Settings simplifies installation and maximizes performance based on usage, image detail, color richness and fidelity, light output, cooling level, and output noise. The Meeting/Classroom function controls laser output to keep brightness as high as possible for years of real-world use.

Keep dust out of the picture

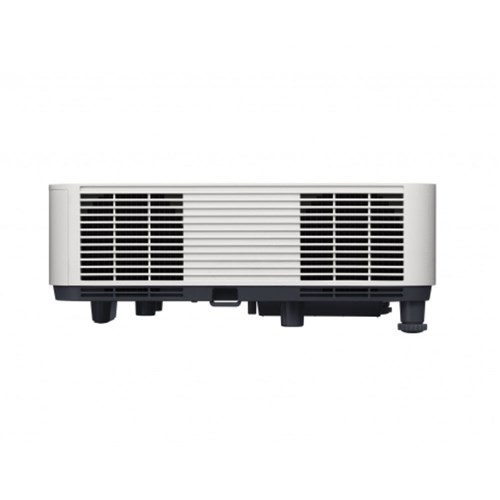

The laser light source is sealed to prevent dust accumulation and eliminate reduced brightness. The dedicated cooling duct structure for the projector’s 3LCD panels is covered with an air filter to prevent dust from entering.

Hassle-free filter care
Focus on great-looking images instead of time-consuming maintenance. The new dust filtration system makes changing filters a thing of the past for general use in classrooms and meeting rooms.* For heavier use in dusty environments, there’s a new clogging sensor to advise when filter cleaning is needed. *Dust density < 0.03mg/m3 and operating time < 10,500 hours. (1,500 hours/year over 7 years.)

Other Features:

Data Cloning - Settings for one projector can be copied to other projectors using a USB memory drive. This greatly simplifies installation and set-up of multiple projectors.
Auto Input Select - The Auto Input Select feature automatically selects an active signal input, so there’s no need to change input each time a device is connected to the projector.
Auto Power On - Connect the VPL-PHZ61/51 to a switched-on computer, and the projector turns on automatically without having to operate the power button.

ZSYVPLPHZ51

Display System

Display System: 3LCD system

Display Device

Size of Effective Display Area: 0.64” (16.3 mm) x 3 BrightEra LCD Panel, Aspect ratio: 16:10
Number of Pixels: 6,912,000 (1920 x 1200 x 3) pixels

Projection Lens

Focus: Manual
Zoom: Manual (Approx. x 1.6)
Lens shift: Manual, Vertical –35% to +55%, Horizontal: +/–15%
Throw Ratio: 1.23: 1 to 1.97: 1

Light Source

Light Source: Laser diode

Screen Size

Screen Size: 1.02 m to 7.62 m (40 in to 300 in) (measured diagonally)

Light Output*1

Mode: Standard: 5,300 lm*2 / 5,800 lm (Center)*3
Mode: Middle: 4,000 lm

Color Light Output*1

Mode: Standard: 5,300lm
Mode: Middle: 4,000 lm

Contrast Ratio (full white / full black)*1

Contrast Ratio (full white / full black)*1: ∞:1

Displayable Scanning Frequency

Horizontal: 15 kHz to 92 kHz
Vertical: 24 Hz to 92 Hz

Keystone Correction (Max.)

Keystone Correction (Max.): Horizontal: +/-30 degrees. Vertical: +/-30 degrees.

Accepted Signal Resolution

Computer Signal Input: Maximum signal resolution: 1920 x 1200*4
Video Signal Input: NTSC, PAL, SECAM, 480/60i, 576/50i, 480/60p, 576/50p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/60p, 1080/50p, 3840/60p, 3840/30p, 3840/25p, 3840/24p, 4096/60p, 4096/30p, 4096/25p, 4096/24p

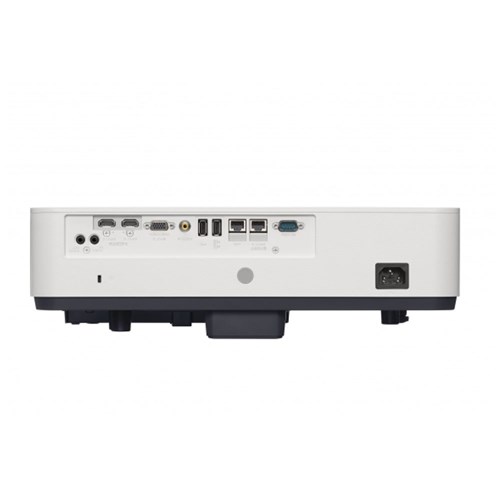

INPUT / OUTPUT

INPUT A: RGB / Y PB PR input connector: Mini D-sub 15 pin (female). Audio input connector: Stereo mini jack.
INPUT B: HDMI input connector: HDMI 19-pin, Digital RGB/Y PB PR, HDCP support. Audio input connector: HDMI audio support.
INPUT C: HDMI input connector: HDMI 19-pin, Digital RGB/Y PB PR, HDCP support. Audio input connector: HDMI audio support.
INPUT D: HDBaseT interface connector: RJ45, 4 play (Video, Audio, LAN, Control).
VIDEO IN: Video input connector: Phono jack (Composite).
OUTPUT: Audio Output connector Stereo mini jack. Audio input connector: Shared with INPUT A.
REMOTE: D-sub 9-pin (male) / RS232C.
LAN: RJ45, 10BASE-T / 100BASE-TX.
USB: TYPE-A x 1 (for F/W update), TYPEA for Power supply.

Speaker

Speaker: 16 W

OSD Languages

OSD Languages: 27-language (English, French, German, Italian, Spanish, Portuguese, Japanese, Chinese, Korean, Russian, Dutch, Norwegian, Swedish, Thai, Arabic ,Turkish, Polish, Vietnamese, Farsi, Finnish, Indonesian, Hungarian, Greek, Czech, Slovak, Romanian).

Acoustic noise (Mode: Standard / Middle) *1

Acoustic noise (Mode: Standard / Middle) *1: 35 dB / 32 dB

Operating Temperature / Operating Humidity

Operating Temperature / Operating Humidity: 0°C to 40°C (32°F to 104°F) / 20% to 80% (no condensation)

Storage Temperature / Storage Humidity

Storage Temperature / Storage Humidity: -10°C to +60°C (14°F to +140°F) / 20% to 80% (no condensation)

Power Requirements

Power Requirements: AC 100 V to 240 V, 4.7 A to 2.0 A, 50 Hz/60 Hz

Power Consumption

AC 100 V to 120 V: 463 W
AC 220 V to 240 V: 434 W

Power Consumption (Standby Mode)

AC 100 V to 120 V: 0.5 W (when “Standby mode” is set to “Low”)
AC 220 V to 240 V: 0.5 W (when “Standby mode” is set to “Low”)

Power Consumption (Networked Standby Mode)

AC 100 V to 120 V: 1 W (LAN), 21 W (ALL Terminals and Networks Connected / exclude USB Device and speaker off, when “Standby Mode” is set to “Standard”)
AC 220 V to 240 V: 1 W (LAN), 21 W (ALL Terminals and Networks Connected / exclude USB Device and speaker off, when “Standby Mode” is set to “Standard”)

Standby Mode / Networked Standby Mode Activated
