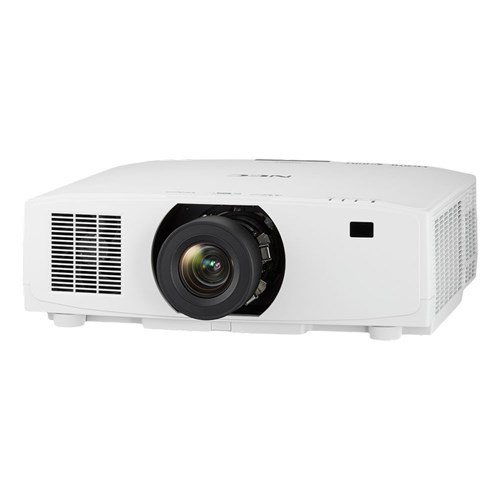

NEC NP-PV800-UL 8000-Lumen WUXGA 3LCD Laser Projector

COST-EFFECTIVE LCD-BASD LASER PROJECTOR WITH INTERCHANGEABLE LENSES

A highly economical projection solution, the PV800UL offers essential installation flexibility, low maintenance and long-life laser performance, yet remains impressively cost-efficient and conveniently compact.

3LCD technology generates brilliantly vivid colour, which, at 8000 Lm brightness, promotes an outstanding visual perception. A broad range of interchangeable lens options are available, alongside essential professional features.

The PV800UL offers the ideal upgrade path to transition to long-life, maintenance-free laser light source technology. Using the same mount and lenses as the lamp-based NEC PA Series projectors, operators can gain additional cost savings by utilising existing assets. For visualisation in large spaces, the PV800UL offers outstanding value for higher education, corporate, leisure and hospitality sectors.

Key Benefits:

• No lamp replacement: up to 20,000 hrs maintenance free operation possible due to Laser Light Source.
• Get Great Performance: while not compromising on quality and ease of use.
• Low Noise Level: with 30dB, the silent technology will not disturb your meeting.
• Impress with vivid colour & contrast: brilliant white and wide colour space with high dynamic contrast.


• Projection Technology: 3LCD Technology
• Native Resolution: 1920x1200
• Aspect Ratio: 16:10
• Contrast Ratio (typ.): 3,000,000:1
• Brightness: 8000 Lumens
• Light Source: Laser
• Light Source Life: 20000 hrs
• Lens: 5 motorised lens options; 5 manual lens options
• Lense Adjustment: Motorised and manual (depending on lens)
• Lens shift: H:±20, V:+10,-50
• Keystone correction: +/- 30° manual horizontal / +/- 30° manual vertical
• Projection Factor: depending on lens selection (std. option NP13ZL at 1.46-2.95:1)
• Projection Distance: 0.7 – 50.9 m
• Screen Size (diagonal): Maximum: 1,270mm / 500"; Minimum: 101.6mm / 40"
• Zoom: Motorised and manual (depending on lens)
• Focus Adjustment: Motorised and manual (depending on lens)
• Supported Resolution: 1920x1080, 3840x2160, 1900x1200, 1280x720, 720×576, 720x480, 1280x768
• Frequency: Horizontal: analog: 0-0 kHz, digital: 15/24-100 kHz; Vertical: 50-120 Hz

CONNECTIVITY

• Digital Input: 1 x HDBaseT; 2 x HDMI™ supporting HDCP 1.4
• Audio Input: 1 x HDBaseT audio support; 2 x HDMI audio support
• Audio Output: 1 x 3.5 mm Stereo Mini Jack (variable)
• Control Input: 1 x 3.5 mm Stereo Mini Jack (Wired Remote); 1 x D-Sub 9 pin (RS-232), Ethernet
• LAN: 1 x RJ45
• USB: 1 x Type A (USB 2.0 high speed)

REMOTE CONTROL

• Remote Input: 1 x 3.5 mm Stereo Mini Jack
• Remote Control: Audio Control; Digital Zoom; Geometric Correction; HDMI; ID Select; ID set; Keystone Correction; Picture Adjust; Picture Mute; Power (On-OFF); Select (up, down, left, right); Shutter function; Source Select; Test Picture; Wired / Wireless Connection; Zoom/Focus and Lens Shift Control

ELECTRICAL

• Power Supply: 100-240 V AC, 50/60 Hz
• Power Consumption: 400-500W, 2.0 (Network Stand-by) / 0.5 (Stand-by)

MECHANICAL

• Dimensions: 407W x 499H x 164D (mm)
• Weight: 10-15 kg
• Fan Noise [dB (A)]: 42 / 32 (Eco / Normal)
• Colour Versions: White

ENVIRONMENTAL CONDITIONS

• Operating Temperature: +0 to +40 °C
• Operating Humidity: 20 to 80%
• Storage Temperature: -10 to 50°C
• Storage Humidity: 20 to 80%

ERGONOMICS

• Safety and Ergonomics: RCM, CE, EAC, ErP, RoHS

ADDITIONAL FEATURES

• Special Characteristics: AMX Beacon; Cinema Quality Picture (CQP) Processing for best image quality; Crestron RoomView; DICOM simulation; Direct Power-Off Function; Free Tilt; HDBaseT; High Altitude Mode; HTTP Browser Control; Keystone Correction (H=±30°, V=±30°); LAN control; Lens Memory; Lens Shift (vertical +0.5 max/-0.1 max, horizontal ± 0.3 max.); Light Source Adjustment; Manual Wall Color Correction; NaViSet Administrator 2; Optional User Logo; OSD with 27 languages; Password Security System; PJ LINK; Portrait Setting; RS-232 Control; Test Pattern; Up to 20,000 hrs Light Source Life

GREEN FEATURES

• Energy Efficiency: ECO scheduler, Intelligent Power Management, Less than 0.3W Stand-By power, Longer Light Source Life, Software scheduling, Timer-Function
• Ecological Materials: Downloadable manuals, 100% recyclable packaging
• Ecological Standards: ErP compliant

WARRANTY

• Projector Warranty: 5 years Warranty
• Light Source Warranty: 5 years or 10000h (whatever comes first)

SHIPPING CONTENT

• Shipping Content: Power Cable, Projector, Quick Setup Guide, IR Remote Control

• Power Cable
• Projector
• Quick Setup Guide
• IR Remote Control
