Bold, rich colour, even in brightly lit rooms
Even powerful projectors can suffer from washed-out image colours in strongly lit rooms. Exclusive to Sony, Bright View delivers high-impact images that don’t sacrifice colour. Newly improved Reality Creation ensures images, diagrams, and text look clear and sharp, even in bright conditions. Intelligent Settings with Ambiance match projected images with your environment for an enhanced viewing experience: there’s even an ambient light sensor to measure room brightness.
Clearer images and text
Reality Creation uses powerful algorithms that boost image resolution closer to 4K clarity. Reality Text improves visibility of characters; great for conference rooms and classrooms.
Bright, beautiful colors
Bright View is Sony’s unique processing technology that brightens images while maintaining rich colour—even in brightly lit business and educational environments.
Enhanced viewing experience
Intelligent Settings with Ambiance uses a built-in light sensor to measure room brightness, automatically adjusting Bright View mode, color gain, and Reality Creation to suit your presentation environment.
Crisp, high-impact images
The use of 4K photos and videos is increasingly common in presentations. While the VPL-FHZ85 are WUXGA projectors, they offer a 4K60P input to display images with quality that’s close to true 4K resolution. Reality Creation is Sony’s processing technology that’s been improved for displaying 4K content better, ensuring images look crisper, with a stronger feeling of depth.
Sophisticated design and superior installation flexibility
The light, compact VPL-FHZ85 makes an elegant addition to any modern work space. Its understated blend-in design features a flat-top surface that minimizes visual impact when the projector is ceiling mounted. Installation is simplified with a choice of optional lenses, while a class-leading lens shift capability overcomes challenges like ceiling obstacles and other AV equipment.
Beautifully slim and stylish
The slim, stylish case design features a flat-top surface that blends in discreetly when the projector is ceiling mounted.
Generous lens shift range
The class-leading vertical +70% lens shift adjustment range offers more installation freedom. A range of lens options suits virtually any room size and throw requirements; the quick-release bayonet simplifies lens exchange.
4K 60P input capable
The projector’s 4K 60P input capability makes life simpler when you’re using the VPL-FHZ85 in multi-screen set-ups with other devices like flat-panel sub-screens. Just split the same 4K signal to drive all your displays, with no conversion needed.
Brighter for longer
While other projectors can fade over time, the VPL-FHZ85/80 are engineered to maintain consistent image brightness. An exclusive Intelligent Settings feature automatically monitors real-world usage, optimizing settings to keep images consistently bright. The sealed laser light source and automated filter cleaning system prevent dust build-up, ensuring cool, efficient operation with uncompromised image brightness.
Designed with intelligence
Intelligent Settings simplifies installation and maximizes performance based on usage, image detail, colour richness and fidelity, light output, cooling level, and output noise. The Meeting/Classroom function controls laser output to keep brightness as high as possible for a period of actual usage time.
Hassle-free filter cleaning
Focus on great-looking images instead of time-consuming maintenance. The automated filter cleaning system removes dust every 100 hours, ensuring unrestricted clean air intake for optimized cooling.
Keep dust out of the picture
The laser light source is sealed to prevent dust accumulation and eliminate reduced brightness. The dedicated cooling duct structure for the projector’s 3LCD panels is covered with an air filter to prevent dust from entering.
Other Features:
Data Cloning
Settings for one projector can be copied to a second and subsequent projectors using a USB memory drive. This greatly simplifies installation and set-up of multiple projectors.
Auto Input Select
The Auto Input Select feature automatically selects an active signal input, so there’s no need to change input each time a device is connected to the projector.
Auto Power On
Connect the VPL-FHZ85 to a switched-on computer, and the projector turns on automatically without having to operate the power button.
ZSYVPLFHZ85
Device
Display system
- Display system: 3 LCD system.
Display device
- Size of effective display area: New LCD panel 19 mm (0.76 in) x 3 BrightEra LCD Panel, Aspect ratio: 16:10.
- Number of pixels: 6,912,000 (1920 x 1200 x 3) pixels.
Projection lens *1
- Focus: Powered.
- Zoom - Powered/Manual: Powered.
- Zoom - Ratio: Approx. x 1.6.
- Throw ratio: 1.39:1 to 2.23:1.
- Lens shift - Powered/Manual: Powered.
- Lens shift - Range Vertical: -5%, +70%.
- Lens shift - Range Horizontal: +/- 32%.
Light source
Screen size
- Screen size: 40'' to 600'' (1.02 m to 15.24 m) (measured diagonally).
Light output *2
- Mode: Standard: 7,300 lm*3/8,000 lm (Center)*4.
- Mode: Middle: 5,840 lm.
Colour light output*2
- Mode: Standard: 7,300 lm.
- Mode: Middle: 5,840 lm.
Time until light output declines to 50%*5
- Mode: Standard: 20000 hours.
- Mode: Middle: 30,000 hours.
Contrast ratio (full white / full black) *2
- Contrast ratio (full white / full black): ∞:1.
Displayable scanning frequency
- Horizontal: 15 kHz to 93 kHz.
- Vertical: 23 Hz to 63 Hz.
Accepted signal resolution
- Computer signal input: Maximum signal resolution: 1920 x 1200 *6.
- Video signal input: NTSC, PAL, SECAM, 480/60i, 576/50i, 480/60p, 576/50p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/60p, 1080/50p, 3840/60p, 3840/30p, 3840/25p, 3840/24p, 4096/60p, 4096/30p, 4096/25p, 4096/24p.
Keystone correction (Max.)
- Horizontal: +/- 30 degrees.
- Vertical: +/- 30 degrees.

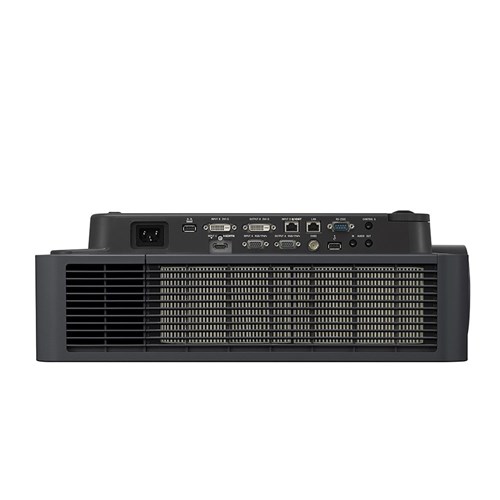

INPUT OUTPUT (Computer/Video/Audio/Control)
- INPUT A: RGB / Y PB PR input connector:Mini D-sub 15 pin (female). Audio input connector: Stereo mini jack.
- INPUT B: DVI input connector: DVI-D 24-pin (single link), HDCP support. Audio input connector: Shared with INPUT A.
- INPUT C: HDMI input connector: HDMI 19-pin, HDCP support. Audio input connector: HDMI audio support.
- INPUT D: HDBaseT interface connector: RJ45, 4 play (Video, Audio, LAN, Control).
- VIDEO IN: Video input connector: BNC. Audio input connector: Shared with input A.
- OUTPUT A: Monitor output for Input A Connector: Mini D-sub 15-pin (female). Audio output connector: Stereo mini jack.
- OUTPUT B: Monitor output for Input B Connector: DVI-D 24-pin (single link), HDCP not supported. Audio output, Monitor out connector: Stereo mini jack.
- REMOTE: D-sub 9-pin (male) / RS232C.
- LAN: RJ45, 10BASE-T/100BASE-TX.
- IR (Control S): Stereo mini jack, Plug in power DC5V.
- USB: TYPE-A (for F/W update) , TYPE-A (for Power supply).
Acoustic Noise *2
- Acoustic Noise (Mode: Standard/Middle): 38 dB/36 dB.
Operating temperature / Operating humidity
- Operating temperature / Operating humidity: 0°C to 45°C / 20% to 80% (no condensation).
Storage temperature / Storage humidity
- Storage temperature / Storage humidity: -10°C to +60°C / 20% to 80% (no condensation).
Power requirements
- Power requirements: AC 100 V to 240 V, 5.1 A to 2.2 A, 50 Hz/60 Hz.
Power consumption
- AC 100 V to 120 VMode: Standard: 506 W.
- AC 220 V to 240 VMode: Standard: 474 W.
Power consumption (Standby Mode)
- AC 100 V to 120 V: 0.5W (when “Standby mode” is set to “Low”).
- AC 220 V to 240 V: 0.5W (when “Standby mode” is set to “Low”).
Power consumption (Networked Standby Mode)
- AC 100 V to 120 V: 9.8 W (LAN). 10.6 W (HDBaseT). 10.6 W (All Terminals and Networks Connected) (when "Standby Mode" is set to "Standard").
- AC 220 V to 240 V: 10.9 W (LAN), 11.6 W (HDBaseT). 11.6 W (All Terminals and Networks Connected) (when "Standby Mode" is set to "Standard").
Standby Mode / Networked Standby Mode Activated
- Standby Mode / Networked Standby Mode Activated: Approx. 10 Minutes.
Heat Dissipation
- AC 100 V to 120 V: 1,617 BTU/h.
- AC 220 V to 240 V: 1,727 BTU/h.
Dimensions
- Dimensions (without protrusions): 460W x 169H x 494D (mm).
Mass
Optional accessories
- Projection Lens: VPLL-3003 / 3007 / Z3009 / Z3010 / Z3024 / Z3032.
Notes
*1 With supplied standard lens
*2 The figures are approximate. They vary depending on the environment or how the projector is used.
*3 The value is in accordance with ISO 21118, and may differ depending on the actual unit. Brightness and contrast vary depending on use conditions and environments.
*4 The value is light output measured at centre area of screen in Standard mode, and average of all products shipped.
*5 Estimated time until light output declines to 50% varies depending on environment.
*6 Available for VESA Reduced Blanking signal.
